Where the OEM camera split starts

The first team usually meets the module in a controlled way. A developer connects the matched interface board to a validated USB host, powers it through the approved input, and confirms that the thermal scene has enough contrast for the civil inspection task. If the mission is a drone payload, that can feel like fast progress. If the mission is a fixed outdoor trial, it also feels promising. The problem is that the sample has only been proven inside one viewing setup, not inside both.

NVIDIA’s Jetson discussion of edge AI and the physical world provides broader context for choosing a host and software workflow alongside a sensor. It does not establish AeroMini compatibility with Jetson or an AI stack. For a shared oem camera sample, the practical handoff is the moment two different deployment teams start assuming the module already answers their questions: each needs its own host, viewing, and acceptance plan.

The trade-off is practical. Reusing one thermal module can simplify sourcing, software baselines, and initial image review. At the same time, it can leave unclear which workflow owns live viewing, which workflow owns enclosure assumptions, and which workflow needs procurement documents first. A shared sample saves time only when the split is declared early.

A realistic mistake looks small on paper: the RFQ says the buyer needs a compact 640 × 512 thermal module for “drone and site monitoring evaluation.” That line sounds efficient, but it leaves out the important differences. The payload team may need the lowest possible integration weight and a clear path to the airborne video workflow. The field team may need a simple local monitor during commissioning, support files for an outdoor housing review, and compliance-related documents before the site visit is approved.

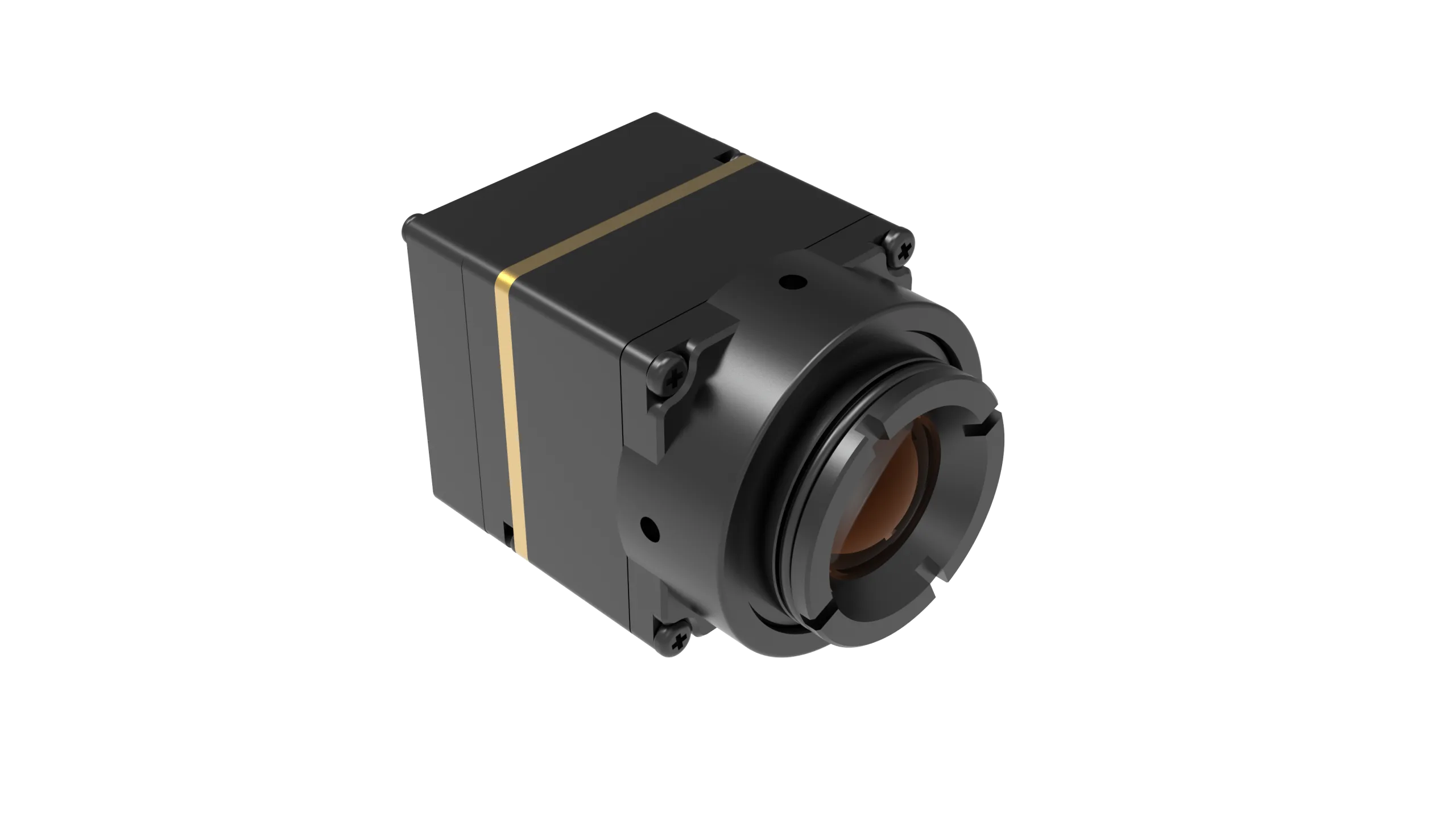

AeroMini 640 parameter table for shared-sample review

The AeroMini 640 configuration page currently offers online checkout for the non-radiometric 60 Hz / 9 mm / USB + CVBS + MIPI selection. If your team is comparing one oem camera sample across civil drone inspection and outdoor field workflows, use the following published values to plan each review, then confirm the ordered lens, board, firmware, and complete assembly.

These values turn a shared oem camera review into a discussion of actual constraints. The <20 g mass and 21 × 21 × 28 mm envelope exclude the lens and flange, so neither proves payload balance or enclosure fit. The selected USB/MIPI video and board-specific control path need separate validation. The published operating range matters when the sample moves from an indoor bench toward a field cabinet, but it does not establish weatherproofing, an IP rating, or mechanical, pin, or protocol interchangeability with another module.

One sample, two teams: an illustrative utility-inspection case

In this illustrative case, the difficulty comes from ordinary project constraints. A shared oem camera sample looks efficient until two teams apply two different meanings to “good enough.” The payload group sees a compact 640 × 512 module to validate within a drone thermal camera application workflow. The field group sees the same module as the beginning of an outdoor and field thermal imaging review with enclosure, service, and support-file questions that will outlive the first demo.

There is also a practical trade-off here. Reusing the same module can reduce software churn and simplify how the engineering team thinks about thermal contrast, optics, and sourcing. It can also create organizational ambiguity. If the drone team owns the sample first, the RFQ often inherits payload language and leaves the field questions for later. If the field team owns the review first, the document may overemphasize housing and service workflow while under-describing payload live view or mass sensitivity.

That is why the right question is not “can one module do both?” The better question is “what has to be stated so one module can be reviewed honestly by both teams?” On the CAMCUDA side, the right next step is usually not another vague sample request. It is a clearer RFQ that separates the two deployment intents and asks for the exact support files that match each one.

Interfaces and compliance: separate the data path from the review path

Interface talk becomes muddy when teams compress three different issues into one line item. First, there is the video path that gets the thermal image into the host. Second, there is the control path that lets the system manage the module. Third, there is the human review path that lets a pilot, installer, or technician see what they need during setup. A disciplined oem camera RFQ should name all three instead of treating them as one abstract “output.”

For AeroMini non-radiometric imaging, USB + CVBS + MIPI and Type-C + CVBS are distinct interface packages. The illustrated 16-pin reference labels RS232_RX/TX; the 26-pin reference includes UART0_TX/RX. Match electrical levels, any required transceiver, and the command protocol instead of assuming universal USB serial or RS-422 support. The USB-IF Video Class v1.5 document set gives class-level transport context; it does not prove a particular AeroMini UVC version, driver, format, or frame rate.

Some teams will never need analog viewing, and the cleanest answer is to stay digital. Other teams still ask for a local monitor, legacy recorder compatibility, or a simple field-viewing step during setup. Confirm the selected board’s CVBS mode, PAL/NTSC format, cable, and actual monitor or recorder chain during RFQ. A 60 Hz factory imaging setting does not guarantee all outputs run at 60 Hz simultaneously. Request the matching Linux drivers, examples, and SDK resources, then validate the intended host and firmware before either team approves its viewing path.

Compliance and procurement language should also be brought forward, not left until the quote is almost closed. If the project touches North America procurement, security monitoring, utility infrastructure, or government-adjacent review, ask early which NDAA-related documents are available for the exact configuration and have procurement review their scope and relevance. For Europe-facing buyers, it is also practical to pair the sample discussion with a look at the EU compliance page and request available documents for the exact configuration, destination market, and use case before hardware is installed. A general compliance page is not certification of the ordered assembly.

A module that is easy to evaluate but hard to specify in the RFQ still slows deployment. Use the sample phase to record the host, firmware, image format, output timing, viewing workflow, and each team’s acceptance criteria. That makes the data path and its integration cost visible while the design is still flexible.

Common mistakes buyers make when one OEM camera sample serves two projects

RFQ checklist for a shared drone-and-field thermal sample

If your next step is to move from evaluation into a serious quote, the RFQ should help the supplier understand the split instead of hiding it. For a shared oem camera sample, name the owner and acceptance criteria for each deployment path before requesting the next batch.

For the first pass, it helps to review the thermal imaging cores category, the uncooled thermal modules category, the support downloads page, and the CAMCUDA FAQ before sending the final request.

For broader context, Micron’s edge-AI overview discusses local inference and its memory and storage requirements, while FLIR’s 2022 SIRAS announcement is a historical example of a finished inspection drone. These are system examples, not evidence of AeroMini AI or Jetson compatibility, radiometry, or finished-drone capabilities. The product values above come from the AeroMini configuration page and its matched documentation; validate each complete deployment separately.
