CAMCUDA · UAV THERMAL INTEGRATION
AeroMini 640.
Built for compact payloads.
640 × 512 LWIR imaging for compact payloads. Non-radiometric: 60 Hz default, optional 30 Hz factory configuration. Radiometric: 25 Hz, availability enquiry only.
CAMCUDA · UAV THERMAL INTEGRATION
AeroMini 640
Small core. A bigger perspective.
640 × 512 LWIR thermal imaging.
A compact USB core for drones and custom gimbals.
AEROMINI 640 · VISIBLE LIGHT & THERMAL IMAGING
See rain droplets on clothing.
Rain droplets on clothing, seen in thermal and visible light.
Explore AeroMini 640Rain droplets and wet areas produce the visible spot pattern in this thermal image; no temperature values are inferred. Faces anonymized for privacy.
Corresponding clothing area
Rain droplets & wet areasDrag to compare · Use arrow keys for precise control
Choose the right core. Validate a sample. Scale with confidence.
Start with AeroMini 640 for eight non-radiometric lens choices and 60 Hz imaging (30 Hz factory option); 25 Hz radiometry is available for supply enquiries only. Compare SuperMini when minimum core size and weight come first, or CAMCUDA FlexMini 640 for OEM optics and MIPI integration. Tell us your lens, interface and quantity requirements to get a configuration-specific quote.
Featured thermal modules
Meet AeroMini 640. Build a compact UAV thermal payload.
Start with AeroMini 640: a 640 × 512 non-radiometric LWIR USB core for drones, DJI-type platforms and custom gimbals. Compare eight lens configurations, sample pricing and production RFQ tiers.
CAMCUDA AeroMini 640
Compact 640 × 512 non-radiometric LWIR USB camera core for drone payloads, DJI-type platforms and custom gimbals. Eight production lens options.
CAMCUDA SuperMini 640 / 640T
A 640 × 512 core measuring 13 × 13 × 13.4 mm, with core-only mass under 3.5 g, excluding the lens and expansion boards. Choose 640 imaging or 640T thermography.
CAMCUDA FlexMini 640
640 × 512 imaging with 12 μm pixels at 50 Hz. Select a CVBS, USB UVC or MIPI output path for your configuration. Custom focal lengths are available for orders over 100 units.
CAMCUDA W640-TIF-K1
A 640 × 512 thermal module for analog CVBS integration. Explore the 9 mm lens configuration and review output and mechanical requirements for your build.
UAV AI Tracking Modules
Two series. Choose your configuration.
Imaging modules for civilian inspection, observation and OEM projects.

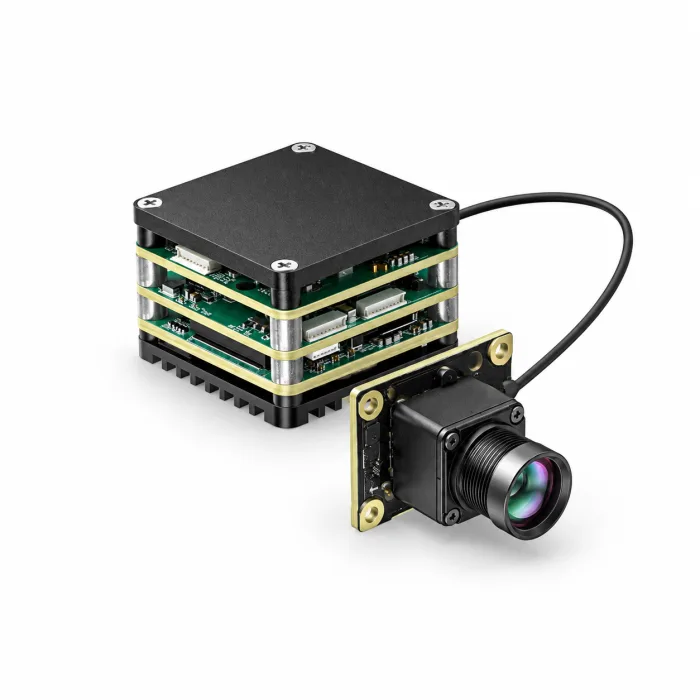

CAMCUDA AI VisionCube
Single or dual visible cameras; optional 384 or 640 thermal imaging. Choose S, D, ST, DT or Pro configurations.

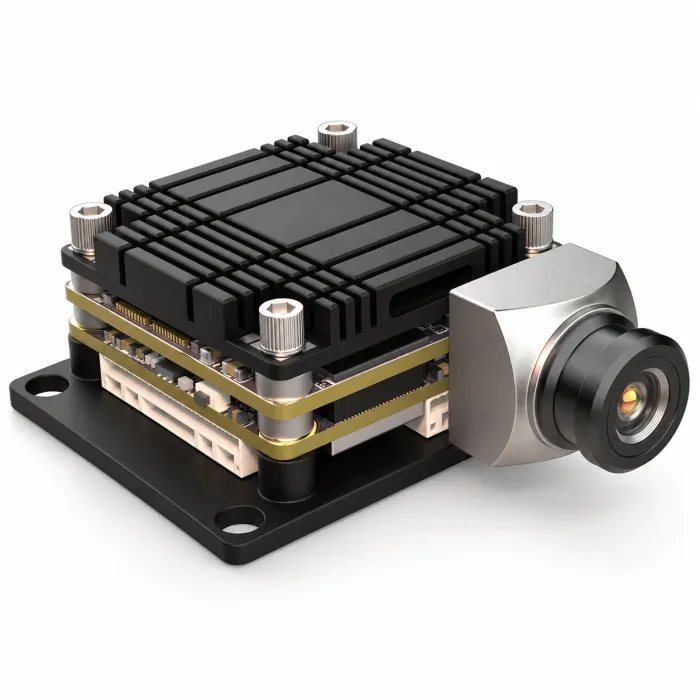

CAMCUDA AI Track
4 TOPS or 6 TOPS processing. Visible-only or visible + 640 thermal imaging, with model-specific camera specifications.
1–99 units online · 100+ units: request volume pricing.
Why buyers choose CAMCUDA
Four reasons procurement and engineering teams can move faster.
Integration-first interfaces
USB, MIPI, CVBS, and DVP options help teams match thermal output to embedded boards, UAV payloads, and inspection devices.
A clear choice for your budget
Compare SuperMini, AeroMini 640 and CAMCUDA FlexMini 640 to balance size, lens options and project cost. For 100+ units, ask for production pricing instead of multiplying the sample price.
Engineering assets ready
Mechanical drawings, interface diagrams, product views, and compliance pages shorten the first technical review.
Project-specific documentation
Request the documentation applicable to your selected configuration and destination. Confirm the scope with our team before procurement approval.
Application scenarios
Two focused scenario paths for fast product selection.
Thermal visibility for night, patrol, and rugged observation.
For outdoor optics, security monitoring, search, and field devices that need low-light awareness.
Low-weight LWIR modules for aerial inspection missions.
For UAV inspection, agriculture, patrol, emergency response, and compact payload integration.
Application scenes are illustrative. Confirm product suitability and integration requirements with our team.
Capability matrix
Quickly narrow the right thermal module configuration.
Use this as the first pass before RFQ. It keeps product selection simple and avoids overbuilding a project too early.
AeroMini engineering assets
AeroMini 640 interfaces & pinouts.

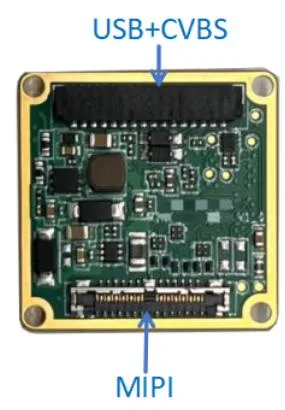

USB / CVBS and MIPI connector locations.

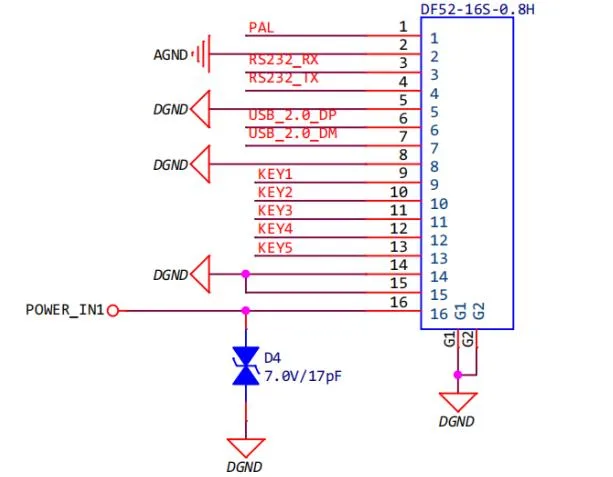

DF52-16S-0.8H connector and signal reference.

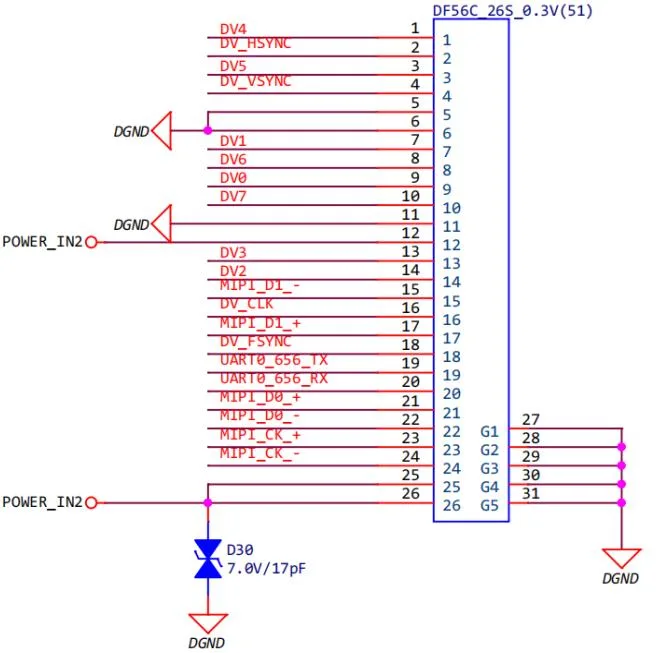

DF56C_26S_0.3V(51) connector and signal reference.
Reference diagrams for the illustrated USB + CVBS + MIPI tailboard. Confirm board revision and approved input voltage before wiring. Type-C and CVBS-only configurations require their own matched wiring guide.
RFQ workflow
A simple path from module selection to integration sample.
Tell us the target device
Drone, handheld, security system, machine vision, outdoor optics, or custom OEM platform.
Confirm output and lens
Match USB, MIPI, CVBS, or DVP with lens angle, distance, enclosure, and frame-rate needs.
Review assets
Use drawings, interface diagrams, product photos, and compliance notes before sample approval.
Move into sample or batch
Request quote, lead time, support documents, and recommended configuration.
Supplier review, made clear
A registered Hong Kong supplier you can verify.
Company details, on-site testing and documents, in one place.
CAMCUDA / HONG KONG
Robocuda Limited
- Hong Kong Business Registration Number
- 78737025
- Registered address
- Unit 9, 1/F, The Cloud, 111 Tung Chau Street, Tai Kok Tsui, Kowloon, Hong Kong
Company & product documentation5 documentsISO 9001 · CE / EMC · CITEO · LUCID · MSDS

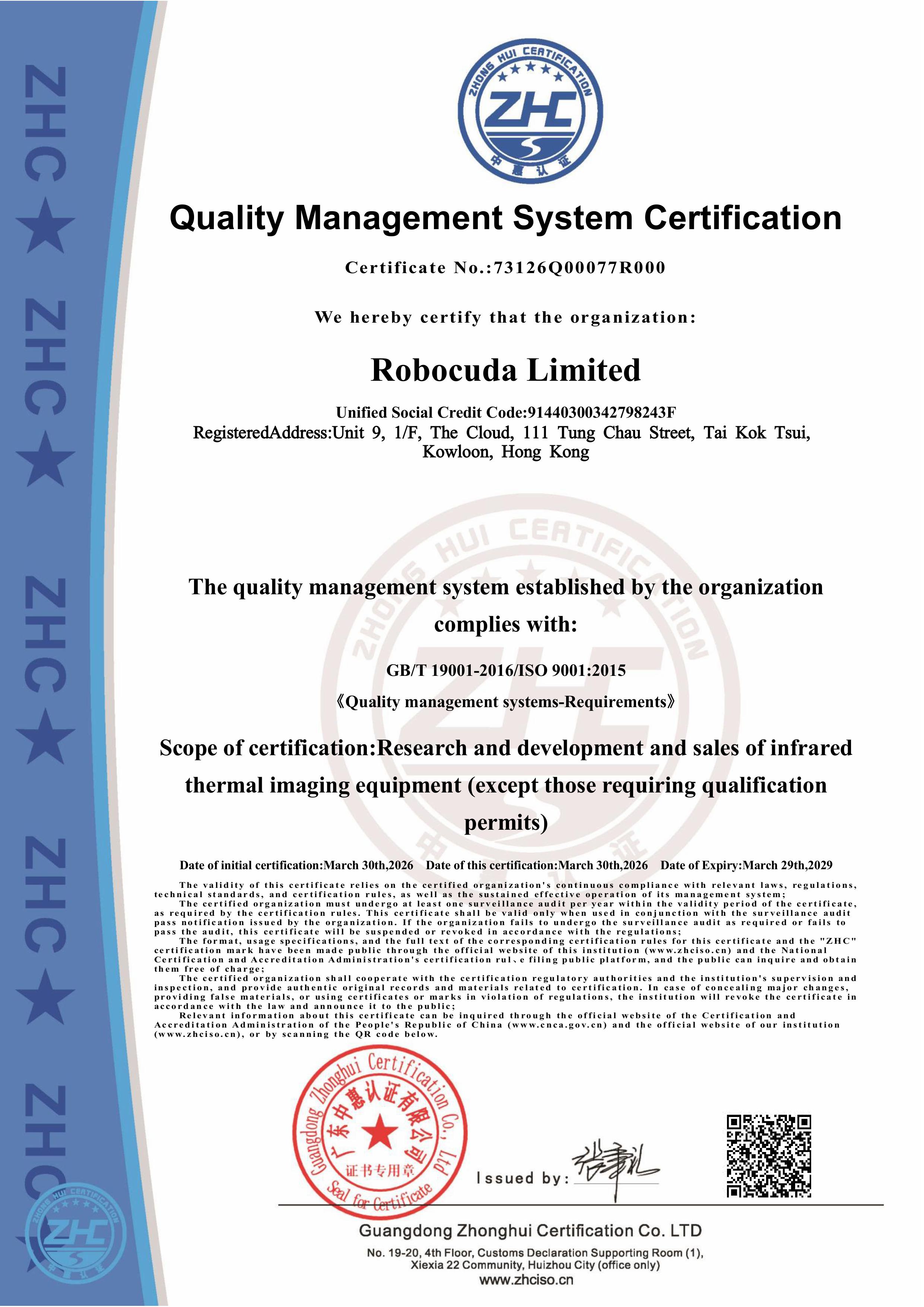

ISO 9001
View originals

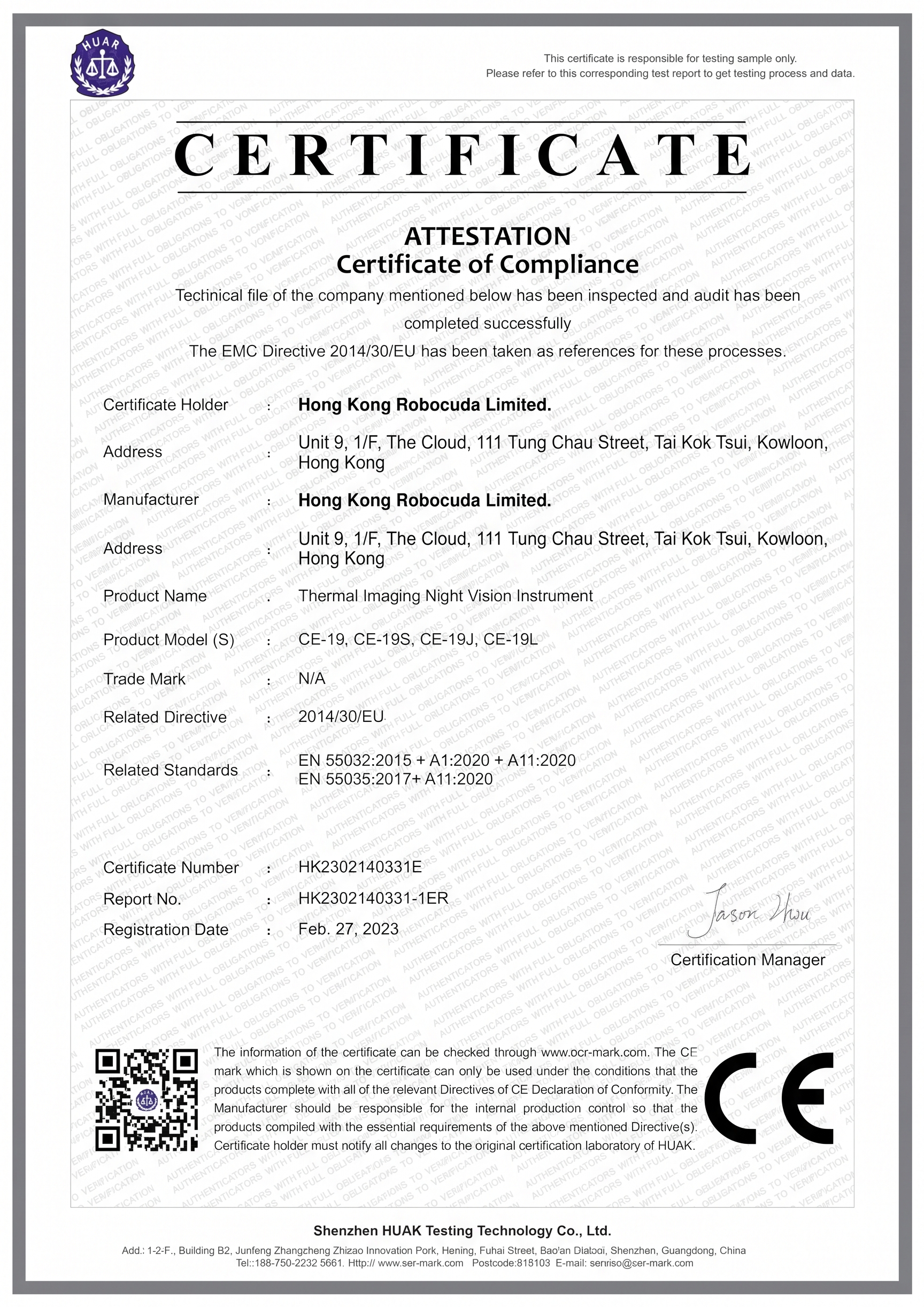

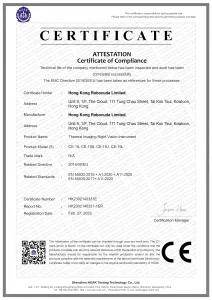

CE EMC
View originals

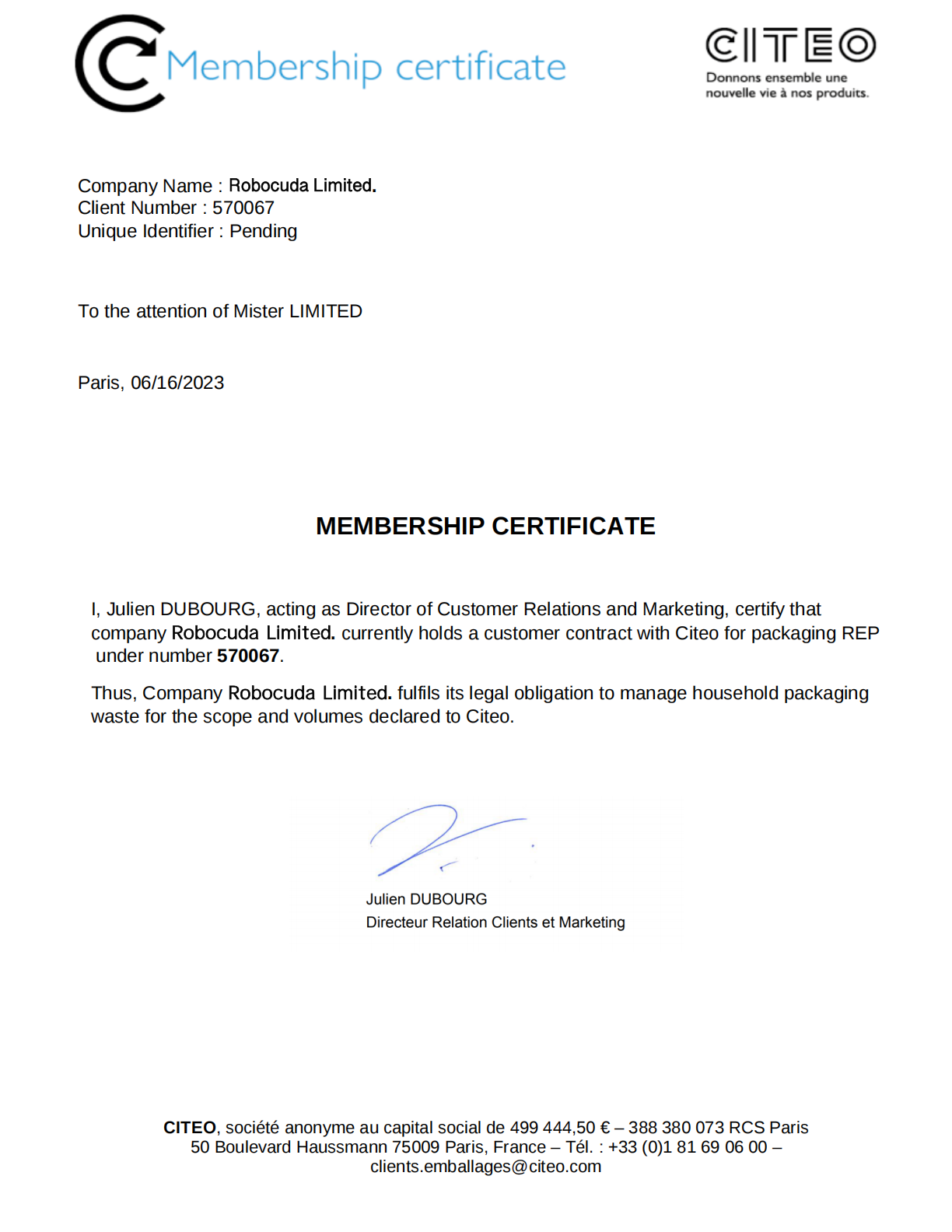

French Packaging
View originals

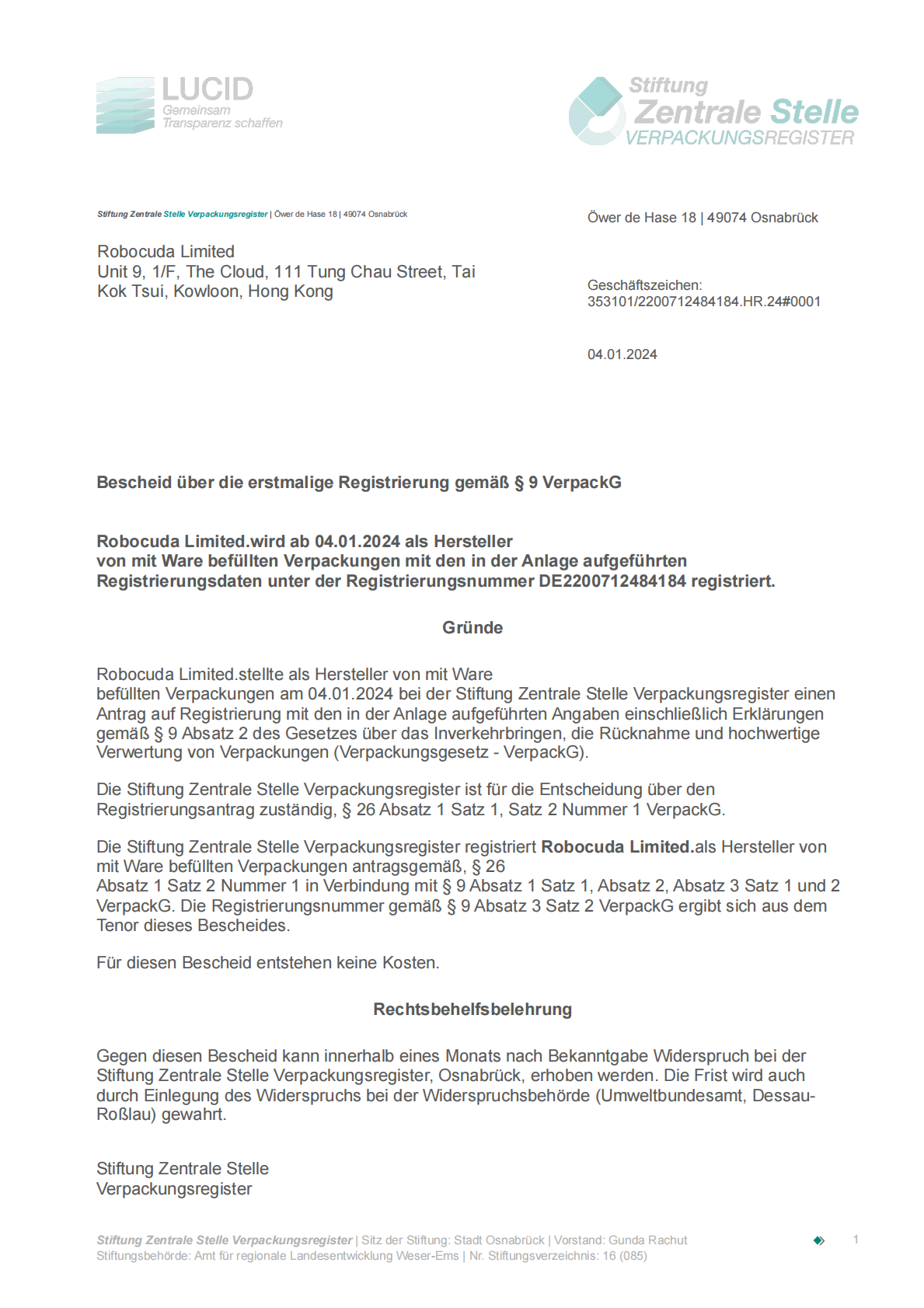

German Packaging
View originals

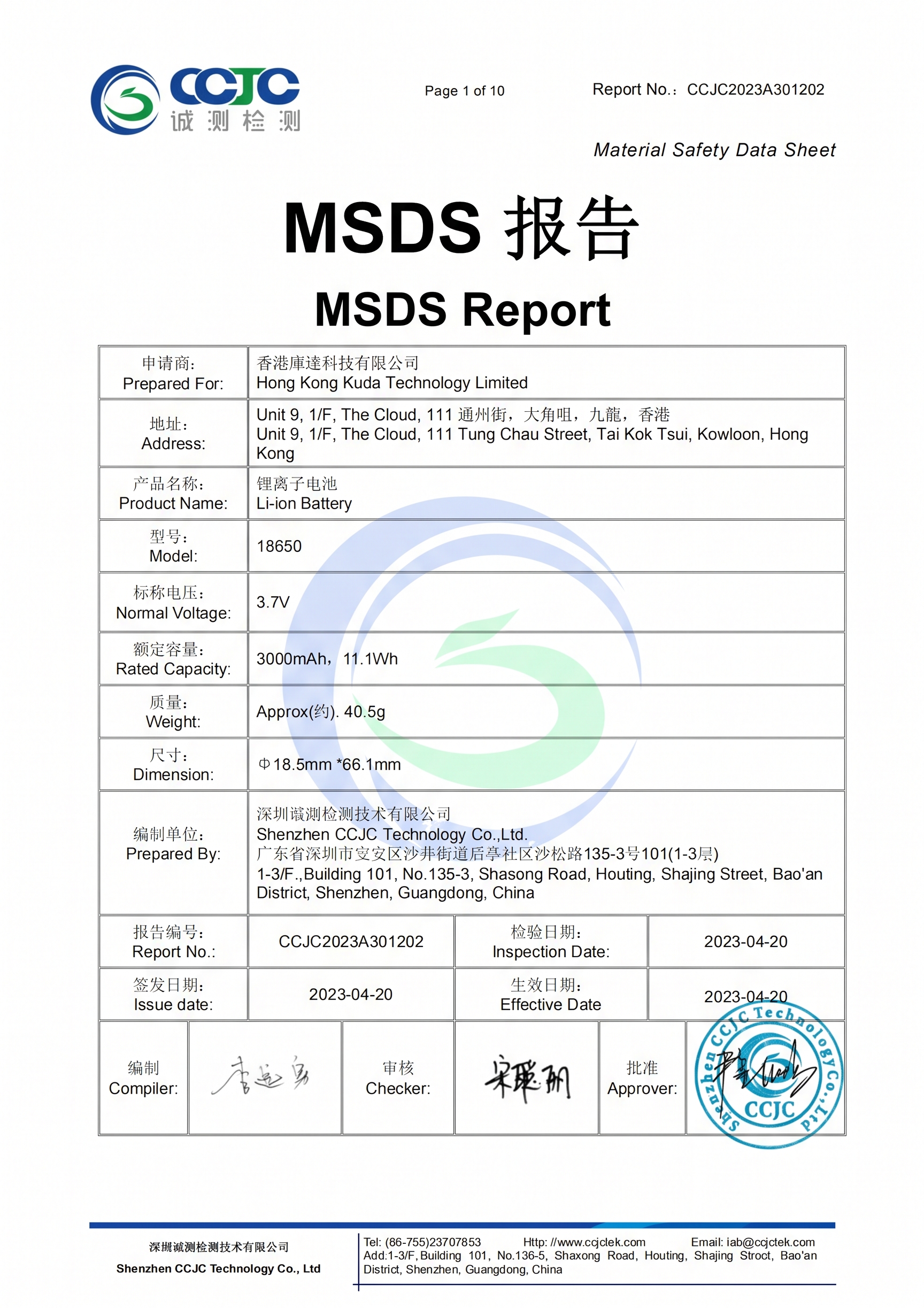

Battery MSDS
View originalsScope varies.
Guides and resources
Latest technical articles from the blog.
Cheap Thermal Imaging: OEM Guide to Low-Cost LWIR Modules & Tradeoffs
Cheap Thermal Imaging: OEM Guide to Low-Cost LWIR Modules & Tradeoffs For systems engineers, robotics architects, and electro-optical payload integrators, the phrase “cheap thermal…
Read guide
Thermal Imaging Drones: OEM Guide to Low-SWaP 640×512 LWIR Integration
Thermal Imaging Drones: OEM Guide to Low-SWaP 640×512 LWIR Integration Modern airborne surveillance, tactical reconnaissance, industrial inspection, and search-and-rescue (SAR) operations have pushed unmanned…
Read guide
Infrared Drone Camera Modules: Low-SWaP 640 LWIR Cores for UAV Payloads
Infrared Drone Camera Modules: Low-SWaP 640 LWIR Cores for UAV Payloads Deploying thermal payloads on unmanned aerial vehicles (UAVs) demands a relentless, uncompromising balance…
Read guideCompliance and support
Get the documentation and support your project needs.
Review technical resources, purchase terms and configuration-specific compliance information. Contact us to confirm the documents and support available for your selected module.
Not sure which module fits?
Send your target device, interface, and viewing distance. We will recommend a module path.
For the fastest response, include resolution target, interface, lens/FOV requirement, expected quantity, and market region.
