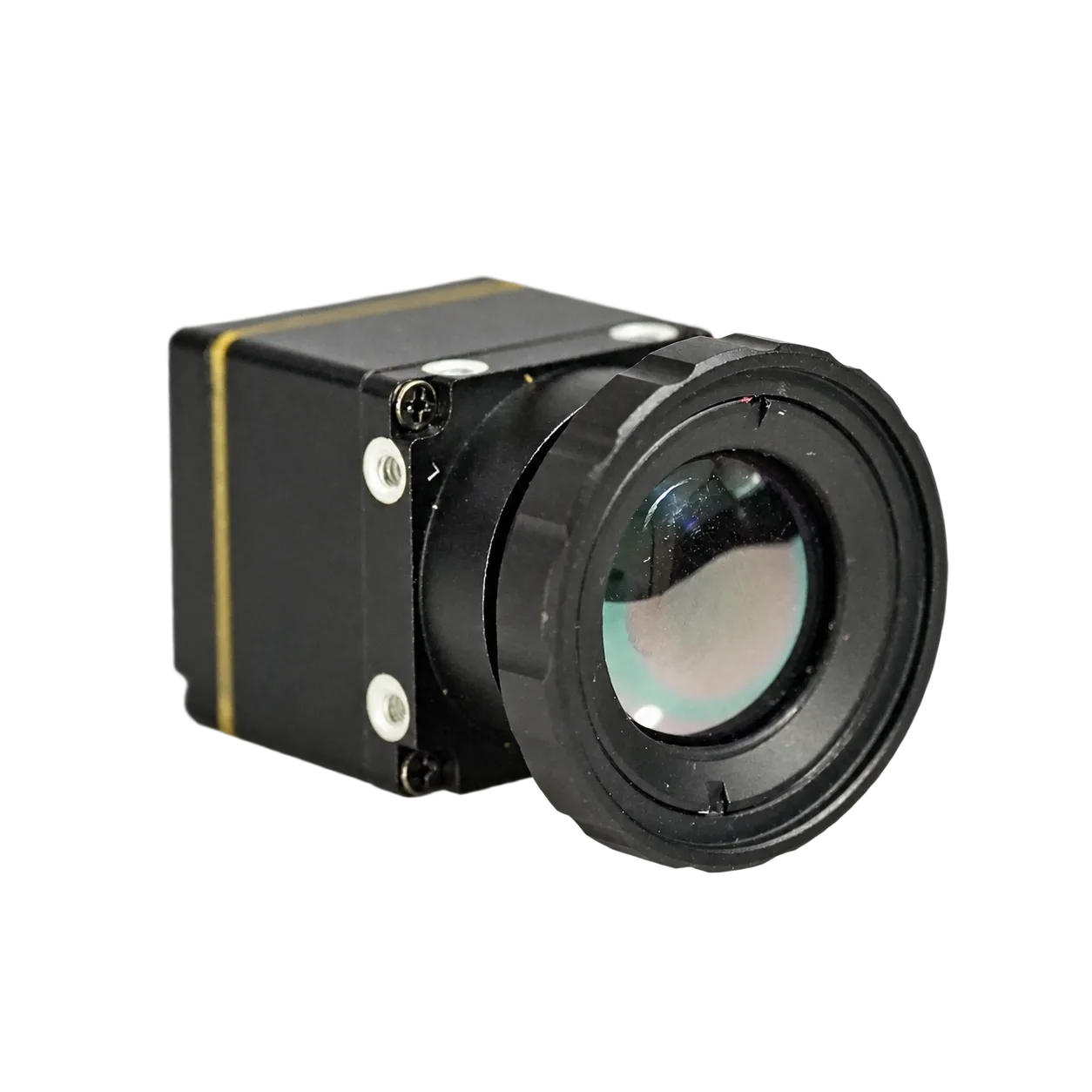

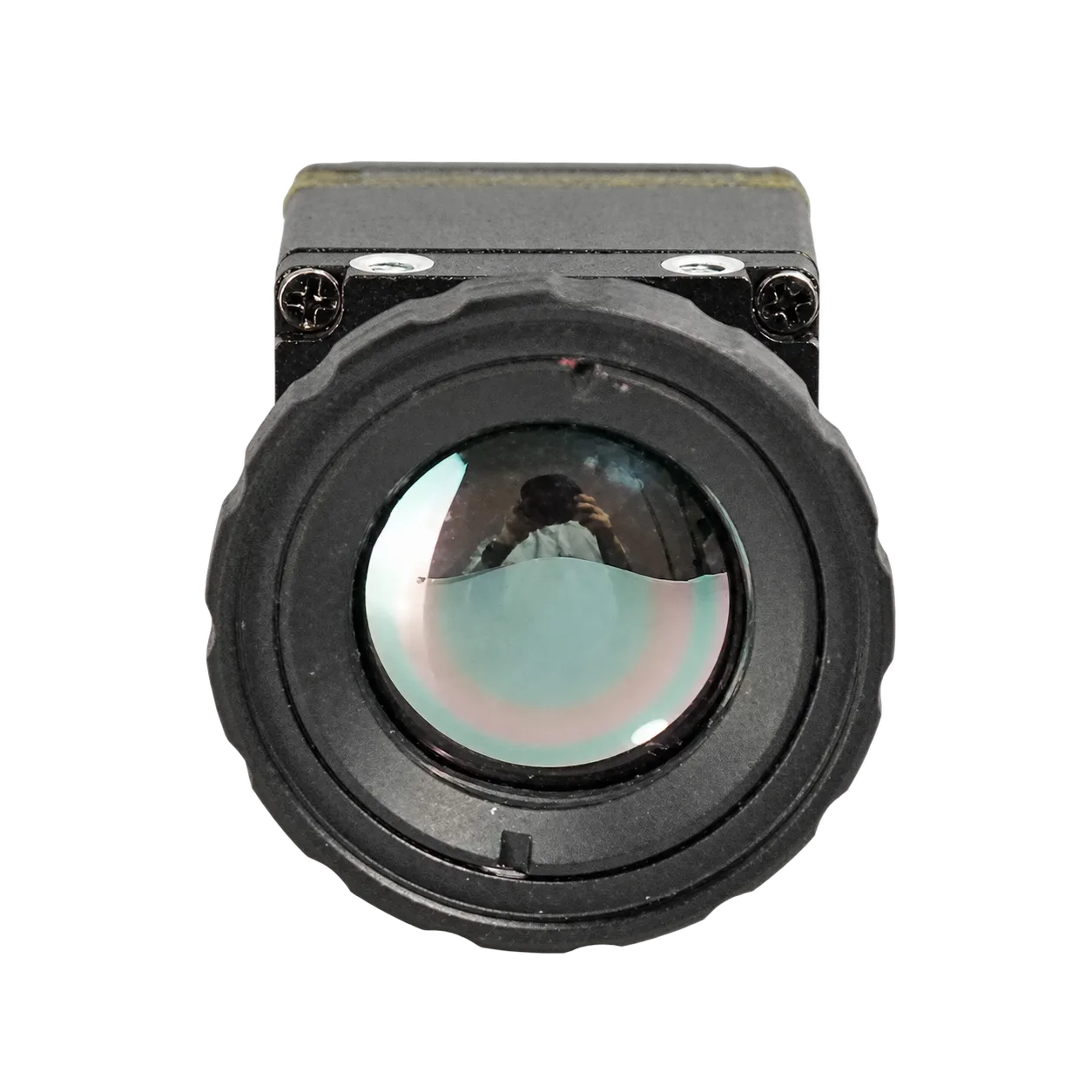

MD-64CA 640 x 512 Uncooled VOx Thermal Imaging Camera Module

640 x 512 uncooled VOx thermal camera module for OEM integration

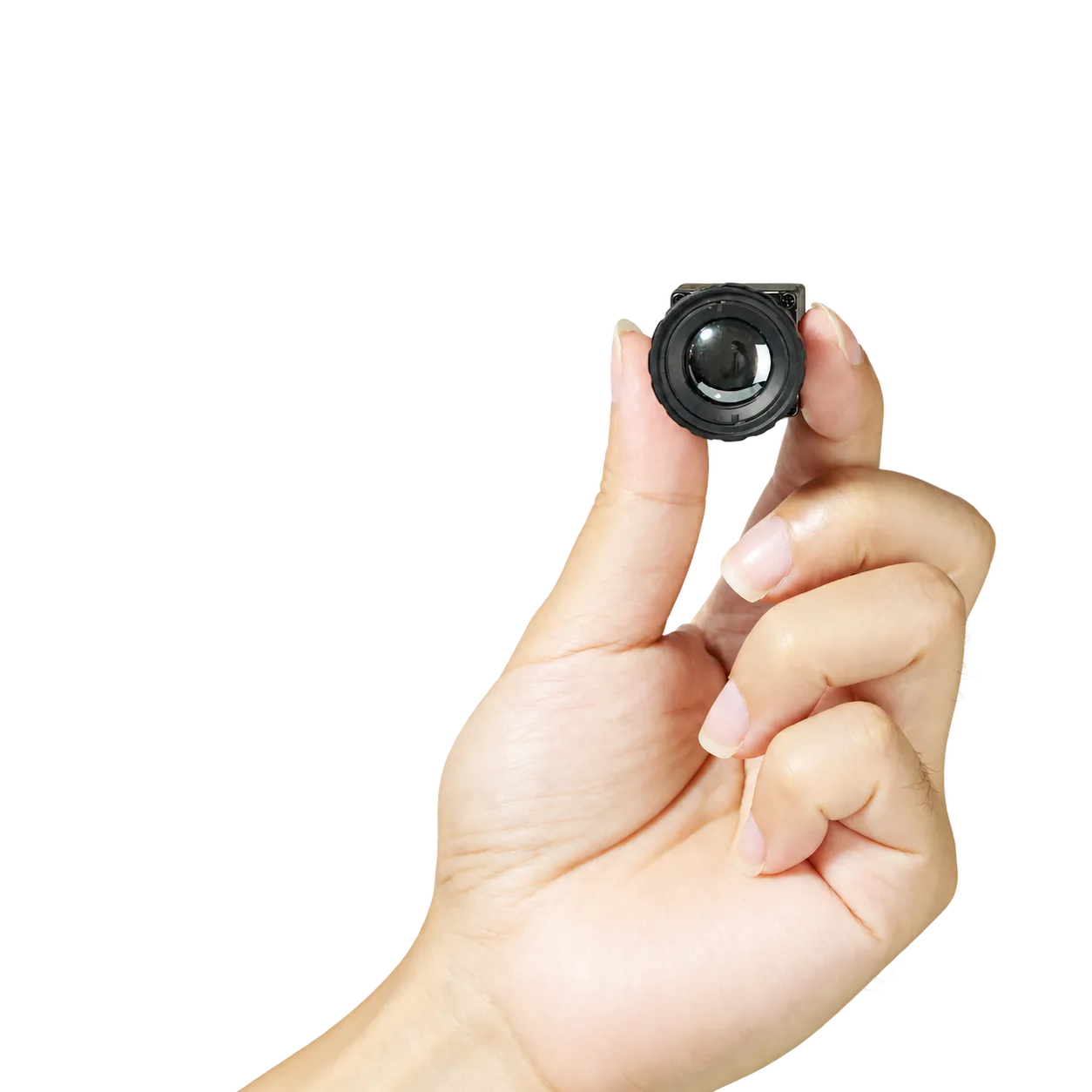

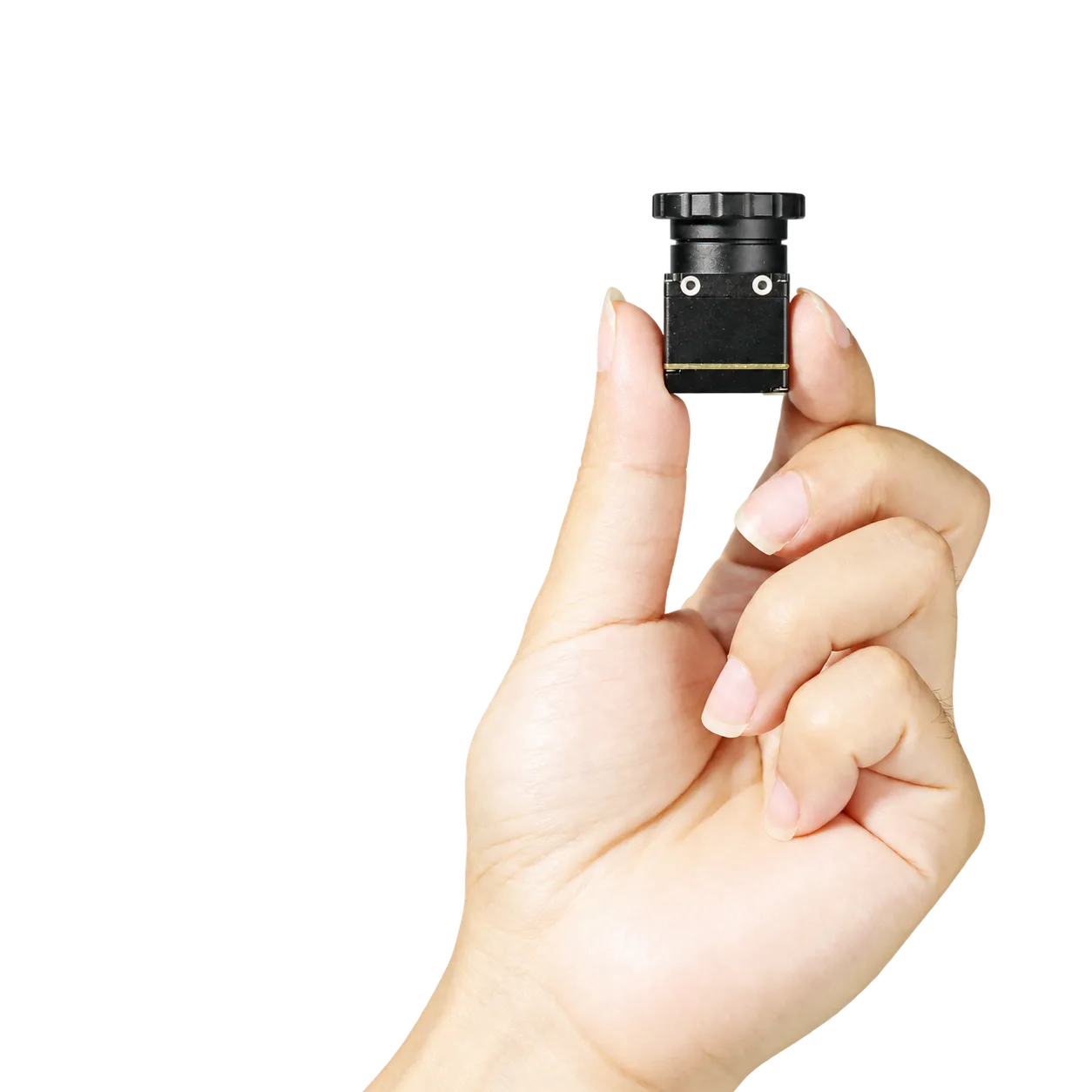

The MD-64CA is a compact long-wave infrared (LWIR) thermal imaging camera module for OEM equipment, embedded vision systems, handheld instruments, security devices, robotics, and UAV payload evaluation. It combines a 640 x 512 uncooled VOx focal-plane array, 12 um pixel pitch, and 50 Hz output in a low-power module format.

Select the lens and video interface to suit the host device before ordering. This listing is for module-level hardware and requires engineering confirmation of the final lens, connector, cable, interface mode, and mechanical integration.

Published reference specifications

Lens and field-of-view selection

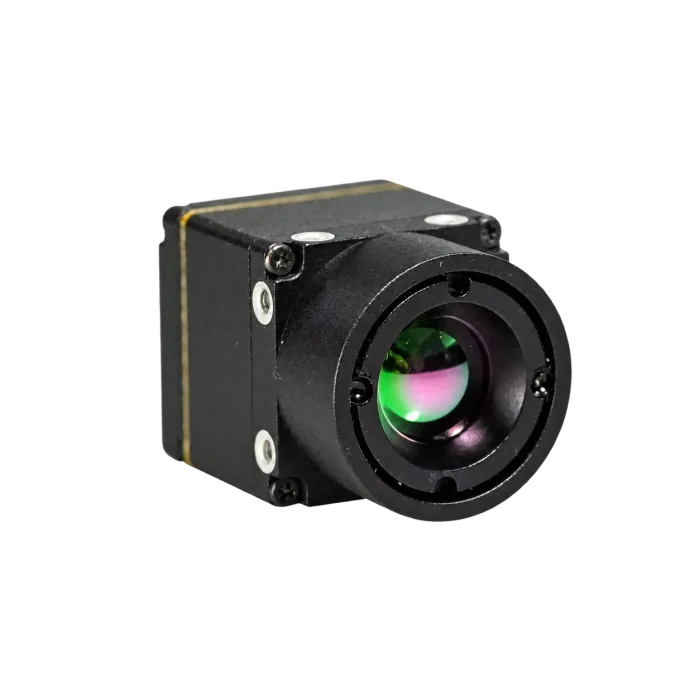

Choose the factory-fitted lens during the RFQ: 4.9 mm (76.2° x 64.2°), 9.1 mm (45.8° x 37.3°), 13 mm (33.0° x 26.6°), 19 mm (22.9° x 18.4°), or 35 mm (12.5° x 10.0°). The lens is factory installed; it is not intended to be changed in field use.

Integration checklist

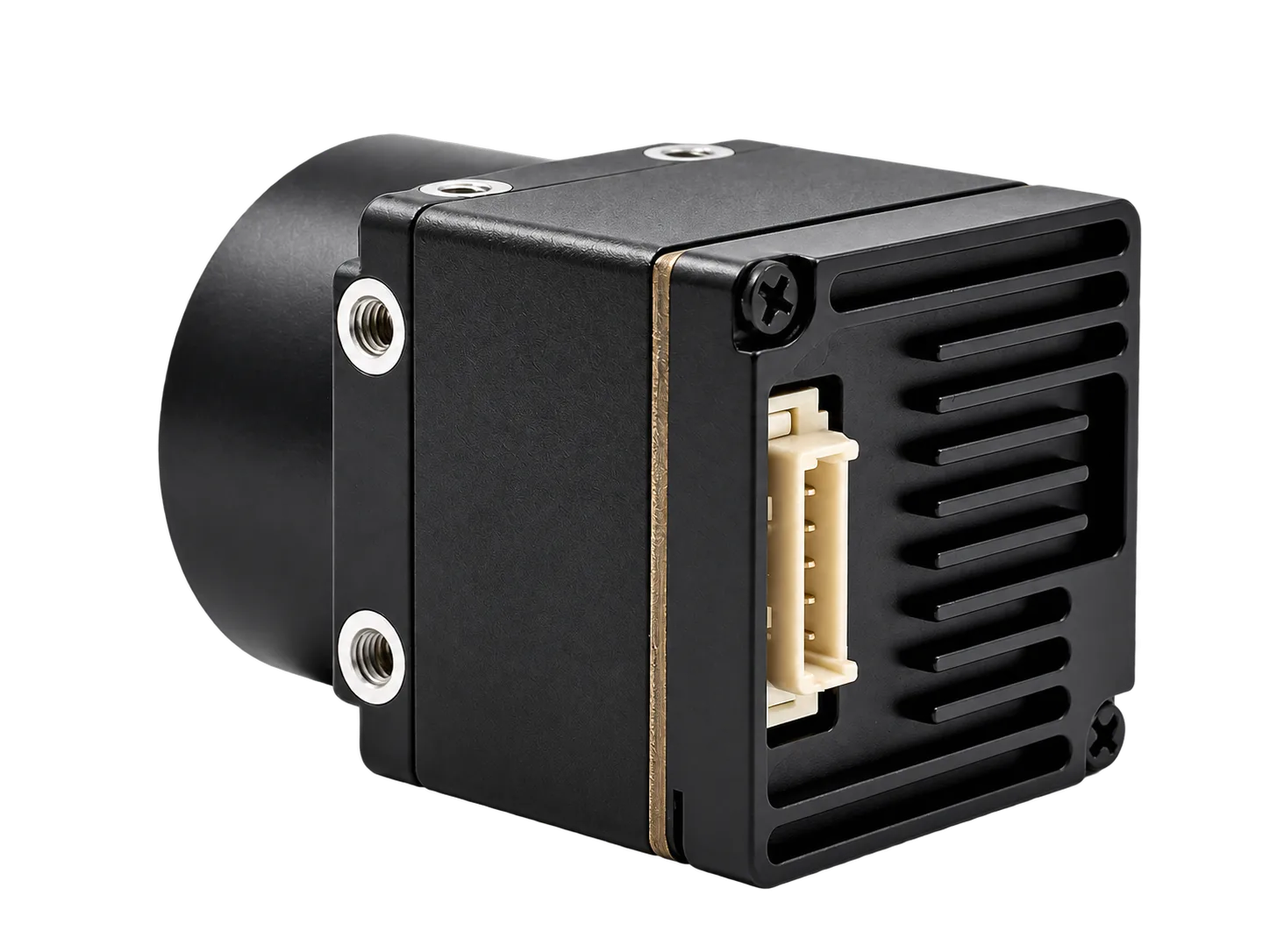

• Confirm the required lens, field of view, connector orientation, and mechanical drawing.

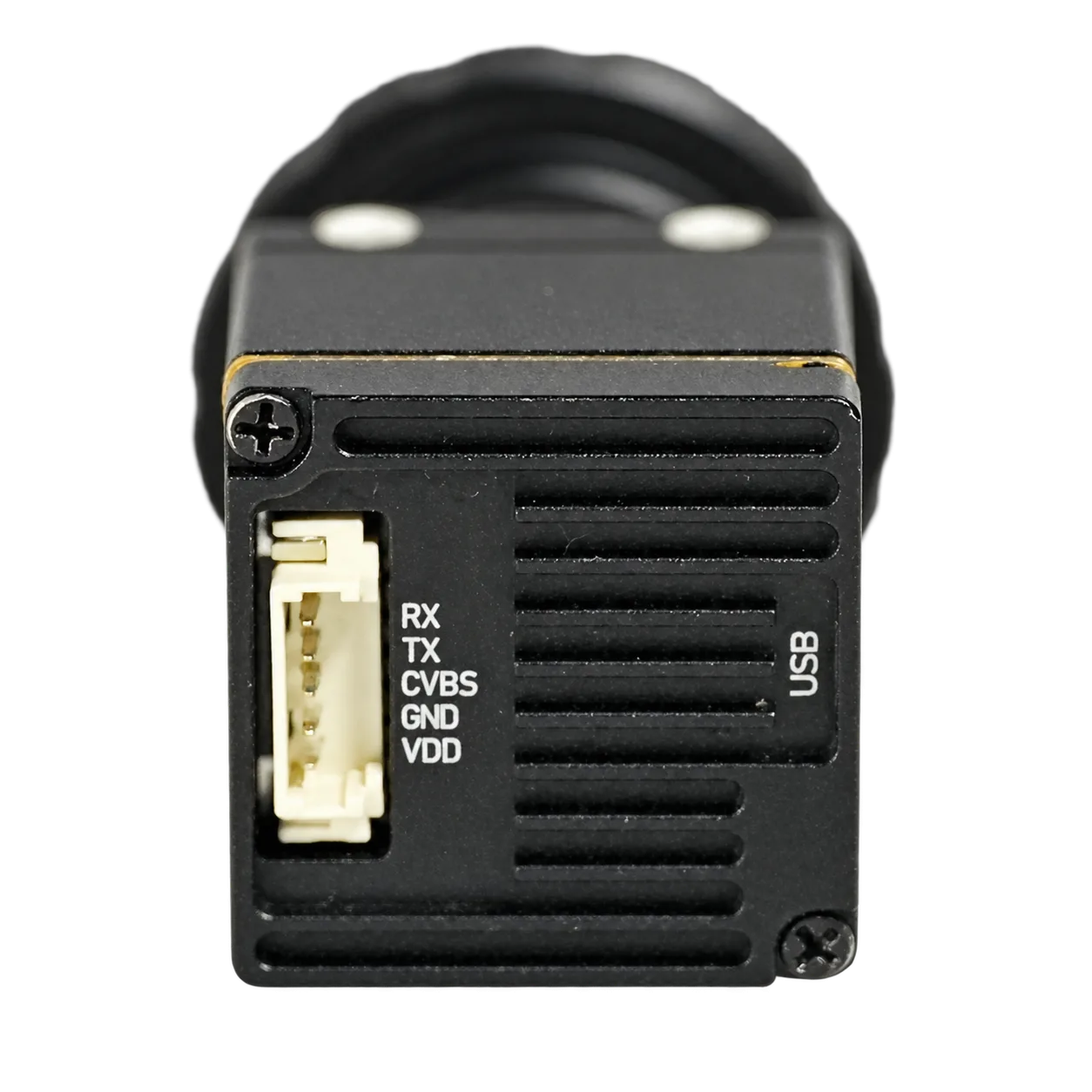

• Confirm whether the host requires CVBS, USB UVC, or MIPI, plus the mating cable and pin definition.
• Validate the host supply voltage, startup current, thermal path, and enclosure clearance.
• Confirm image controls, firmware version, calibration expectations, and required compliance documents before production.

Supply boundary and volume orders

The quoted scope is the MD-64CA thermal module in the confirmed lens and interface configuration. Host computer, display, power regulation, enclosure, cables, gimbal, UAV, integration service, and application software are not included unless explicitly listed in the quotation.

Sample quantities can be ordered online. The 100+ unit price is applied automatically in the cart. Orders of 1000 or more units are handled by RFQ so Camcuda can confirm the production configuration, lead time, logistics, and final volume quotation.
