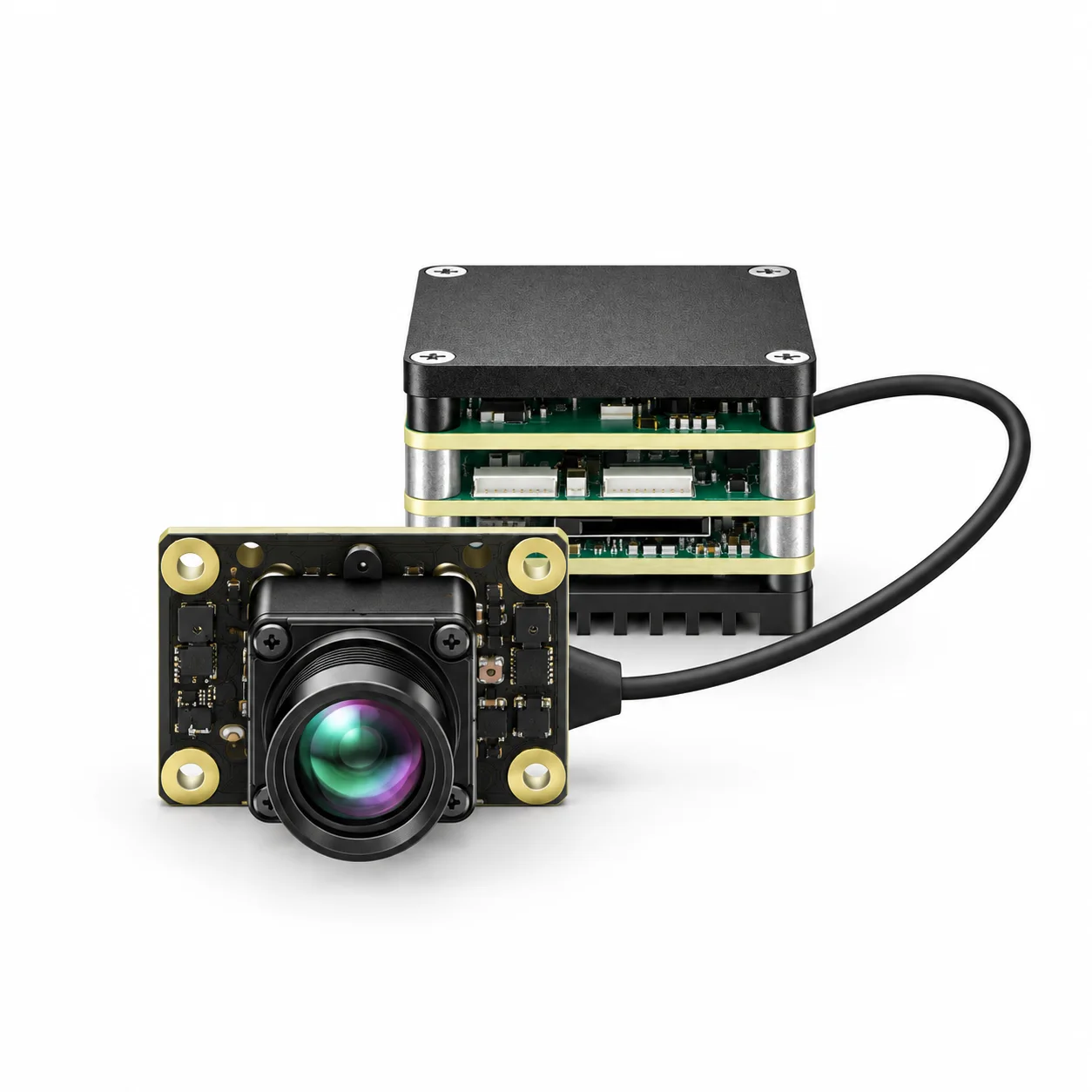

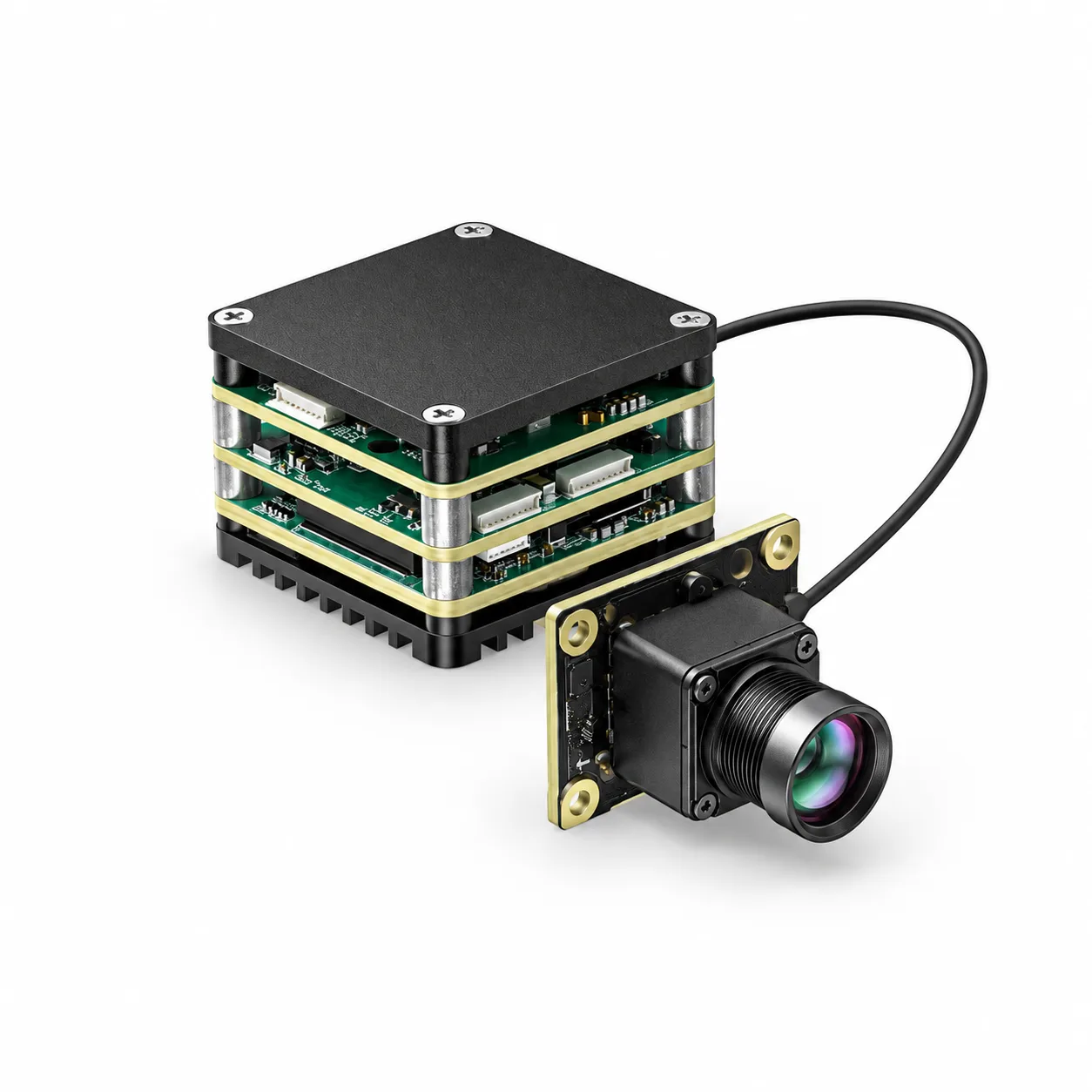

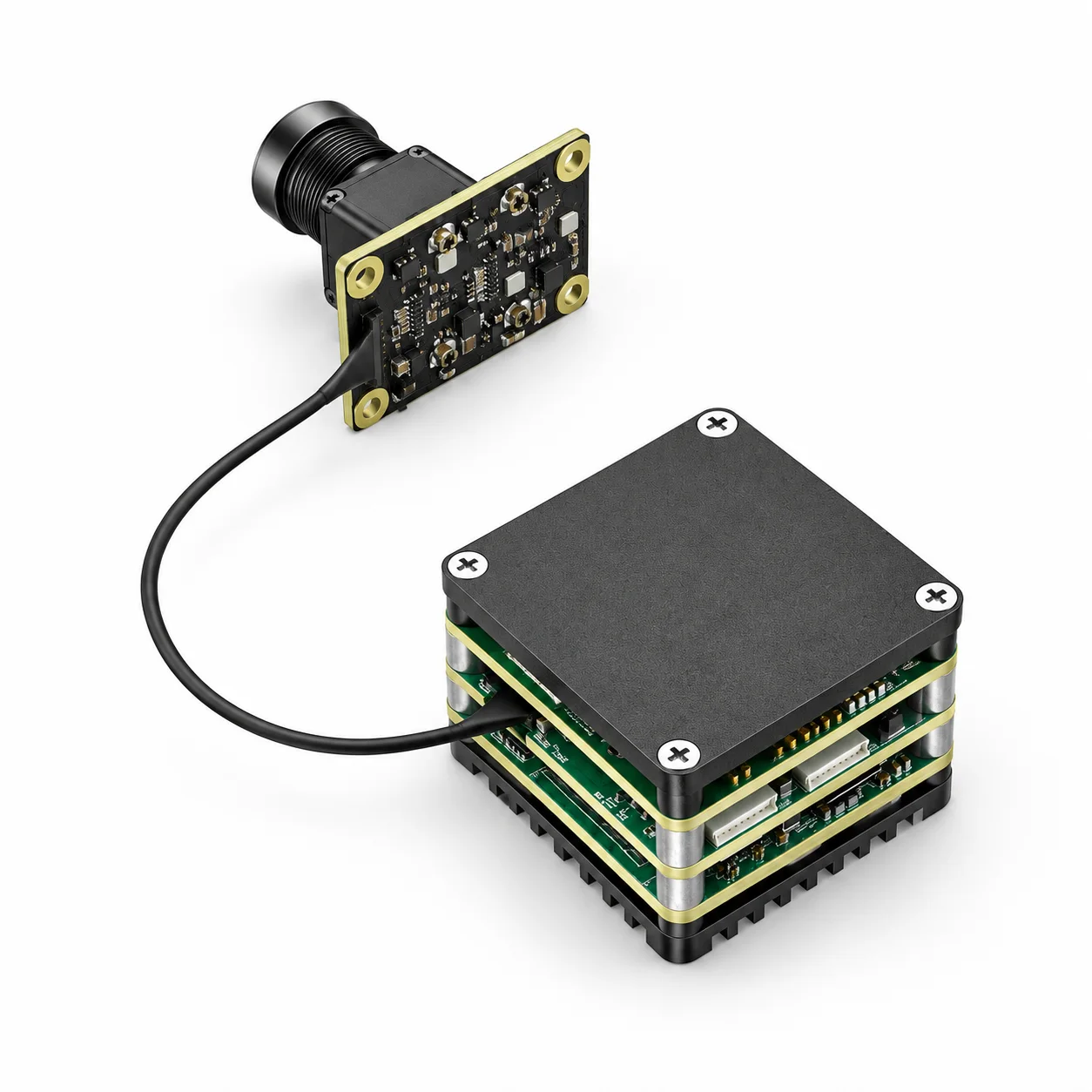

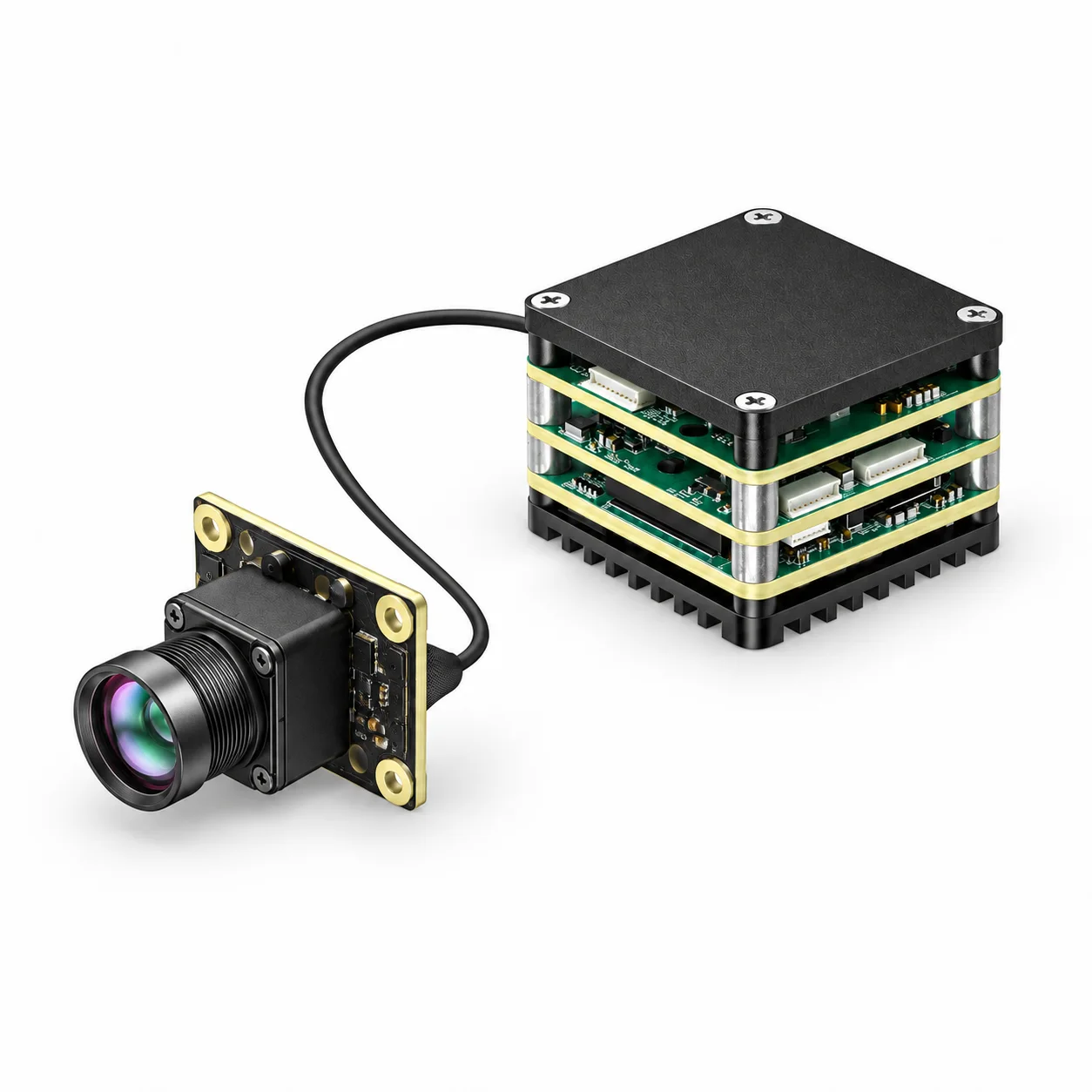

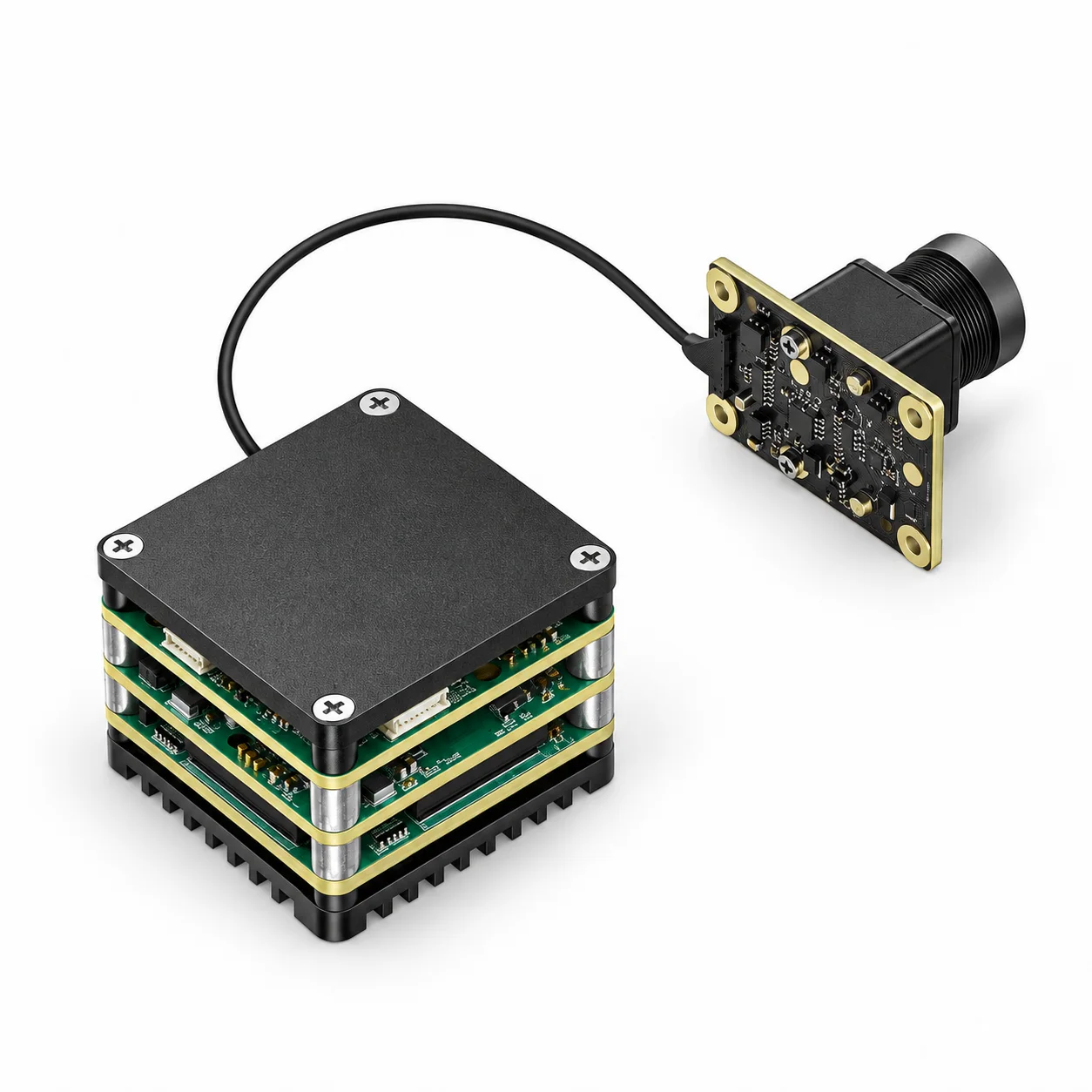

1 / 5CAMCUDA AI VisionCube Visible & Thermal Camera Modules
Price range: $361.25 through $1,384.78
Six configurations for civilian inspection and observation: S / D visible imaging, ST / DT with 384 thermal imaging, and ST Pro / DT Pro with 640 thermal imaging.
- S-series: single visible camera, 1 TOPS. D-series: dual visible cameras, 6 TOPS.
- All models: 1920 × 1080 visible output at 30 Hz.
- ST / DT: 384 × 288 at 25 Hz. ST Pro / DT Pro: 640 × 512 at 50 Hz.
- Samples in stock. 100+ units: request a quotation.
Five views for every configuration. Select a model to explore its matching image gallery.
Configure and purchase
Choose your configuration
Review the current online unit price, then check out or request an OEM quotation.
Confirming configuration…
Express checkout
OEM & volume pricing
Configuration review for custom projects and production orders.
Pricing is confirmed for your selected configuration.
Discuss a custom configurationDescription
VisionCube · Six imaging configurations
Choose visible imaging, then the thermal resolution.
The S family combines a single visible camera with 1 TOPS processing. The D family combines wide-angle and telephoto visible imaging with 6 TOPS processing. Add 384 thermal imaging with ST / DT, or 640 thermal imaging with ST Pro / DT Pro, for civilian inspection and observation.
Configuration comparison
Six sample options. One product family.
| Model | Visible camera | AI processing | Thermal imaging |
|---|---|---|---|
| AI VisionCube S | Single visible | 1 TOPS | None |
| AI VisionCube D | Dual visible | 6 TOPS | None |
| AI VisionCube ST | Single visible | 1 TOPS | 384 × 288 / 25 Hz |
| AI VisionCube DT | Dual visible | 6 TOPS | 384 × 288 / 25 Hz |
| AI VisionCube ST Pro | Single visible | 1 TOPS | 640 × 512 / 50 Hz |
| AI VisionCube DT Pro | Dual visible | 6 TOPS | 640 × 512 / 50 Hz |
Select a model above for its current online unit price. All six quoted sample configurations are marked in stock. 100+ unit prices are not published: request a volume quotation. Each configuration has five matching views. Select your AI VisionCube model to update the main image and all five thumbnails.
Application videos
See the imaging views in motion.
Field application recording
Supplied field recording showing live visible-camera imagery on an outdoor monitor. Confirm the demonstrated configuration for your project.
Supplier family demonstration
Supplier-provided footage showing visible imagery, picture-in-picture views and thermal imagery. The footage includes tracking overlays and on-screen test annotations; it is not a CAMCUDA civilian inspection recording or an acceptance test for your selected configuration.
Supplied AI VisionCube brochure · 2026-03-04
Visible-camera specifications.
| Specification | S / ST / ST Pro | D / DT / DT Pro |
|---|---|---|
| Camera | Single visible | Dual visible |
| Visible output | 1920 × 1080 at 30 Hz | 1920 × 1080 at 30 Hz |
| Optics | 4 mm | 3.9 mm wide-angle + 12 mm telephoto |
| Wide / single field of view | 69° H × 42° V | 72° H × 45° V |
| Telephoto field of view | Not applicable | 26° H × 15° V |
| CMOS entries | 1/2.8 inch | 1/2.8 inch single-visible subsection; 1/2.6 inch dual-visible subsection |
| Sensitivity (as supplied) | 7341 mV/lux·s | 9650 mV/lux·s |
| Camera dimensions | 19 × 19 × 30 mm | 40.8 × 25 × 26 mm |
| AI processing | 1 TOPS | 6 TOPS |
Sensor entries and sensitivity units follow the brochure. Confirm the final camera bill of materials; the sensitivity value is not a minimum-illumination lux rating.
Thermal specifications by configuration.
| Specification | ST / DT | ST Pro / DT Pro |
|---|---|---|
| Resolution / frame rate | 384 × 288 / 25 Hz | 640 × 512 / 50 Hz |
| Pixel pitch | 12 μm | 12 μm |
| Optics | 9.1 mm | 9.1 mm |
| Field of view | 20.3° H × 15.2° V | 45.9° H × 36.9° V |
| Spectral response | 8–14 μm LWIR | 8–14 μm LWIR |
| Camera dimensions | 26 × 26 × 32.85 mm | 26 × 26 × 21.1 mm, excluding lens and connectors |
| Camera weight | 32.4 g | ≤23 g, excluding lens and connectors |
| Interface | USB | USB |
S and D do not include thermal cameras. The brochure does not specify calibrated temperature-measurement range or accuracy; do not assume radiometric capability.
Common processing-board reference.
Input: 9–16 V. Board dimensions: 38 × 38 × 29 mm. Mounting: 25.5 × 25.5 mm. Board weight: 43.8 g. Picture-in-picture is supported according to the brochure.
These are component specifications, not complete kit dimensions or mass. Confirm included accessories, software, camera assembly and dispatch schedule before ordering.
Shipping uses a provisional 1 kg billable allowance per kit, not measured product weight. Actual packed dimensions and mass must be checked before dispatch. Orders outside the online shipping table require a shipping quotation.
100+ units · Volume pricing
Request a project quotation.
Send your model, quantity, civilian inspection or observation application, destination and schedule for a confirmed configuration and bulk quotation.
Additional information
| Configuration | AI VisionCube S, AI VisionCube D, AI VisionCube ST, AI VisionCube DT, AI VisionCube ST Pro, AI VisionCube DT Pro |
|---|
Related products
-

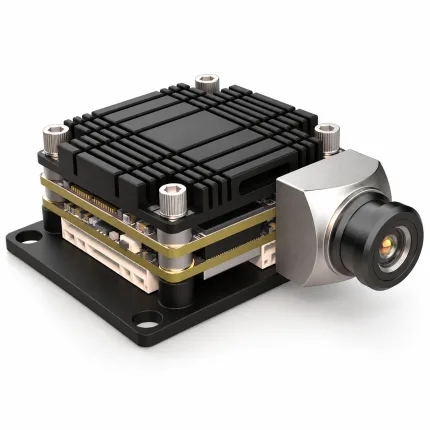

CAMCUDA AI Track EO & Thermal UAV Camera Modules
