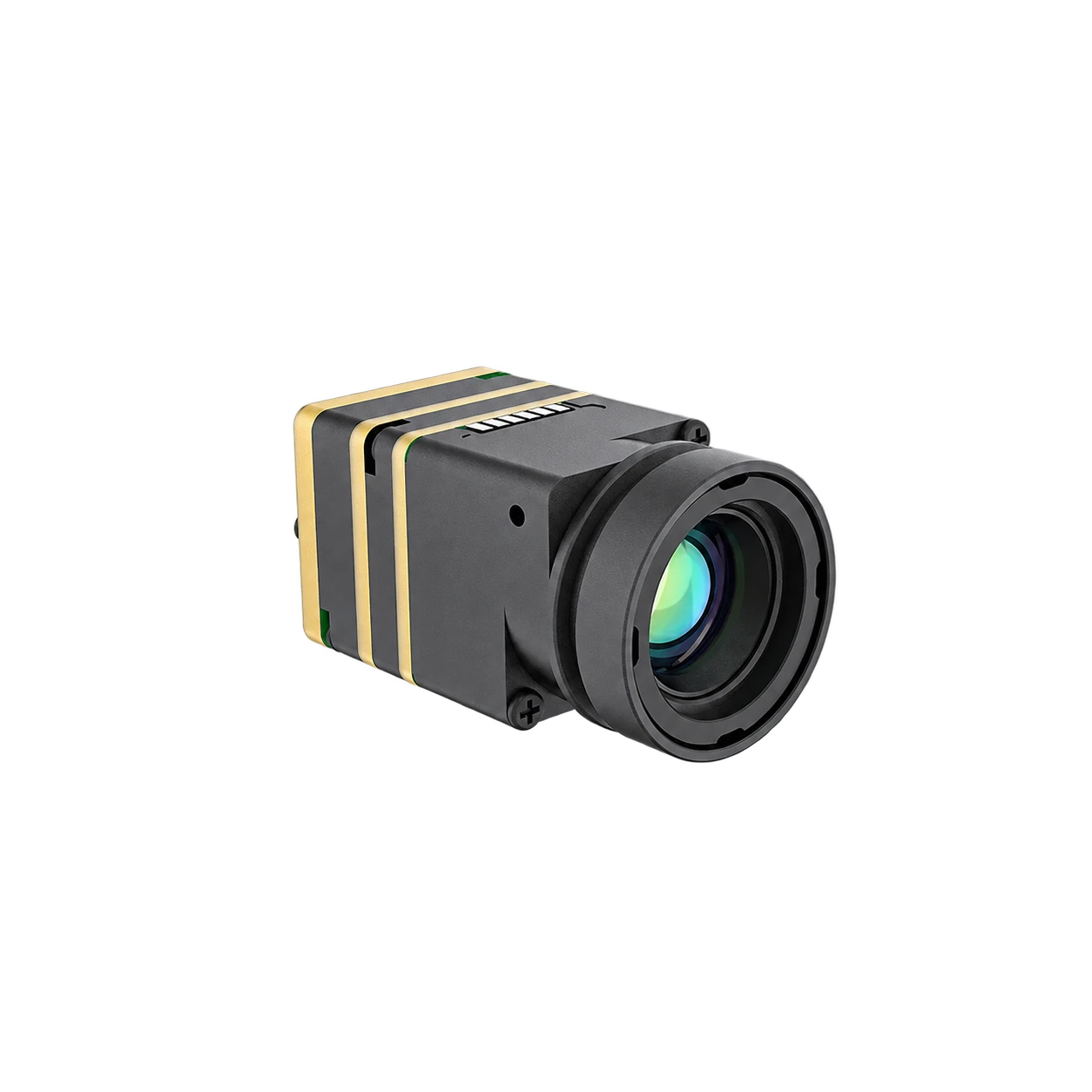

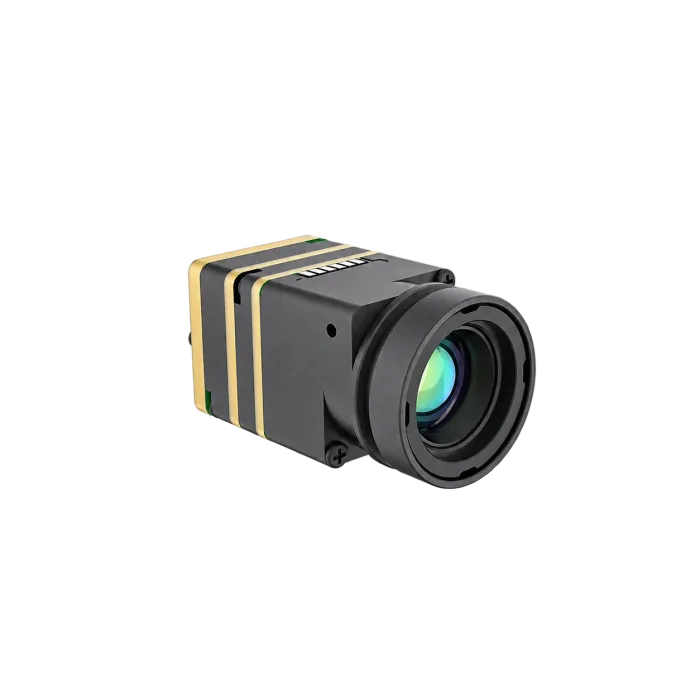

CAMCUDA SuperMini 640 / 640T Ultra-Light LWIR Thermal Camera Module

640 × 512VOx LWIR8 μmPixel pitch<3.5 gCore only13 × 13 mmFootprint

Ultra-miniature 640 × 512 uncooled VOx LWIR thermal imaging core with an 8 μm pixel pitch, 13 × 13 × 13.4 mm core dimensions, less than 3.5 g weight and ≤0.5 W typical power. Choose the 50 Hz imaging-only CAMCUDA SuperMini 640 or the 30 Hz thermographic CAMCUDA SuperMini 640T, with four F1.0 athermal lens options. Lens, interface, supplied items and project quantity are confirmed by quotation before an order is accepted.

Two models, same sample price: choose 50 Hz imaging or 30 Hz thermography. Confirm the lens, interface, cable and mechanical drawing before ordering.

Configuration review

Choose your configuration

Share the quantity, destination and integration requirements for a reviewed quotation.

Configuration
Selected configuration
Project quotation

Configuration review required

OEM & volume pricing

Configuration review for custom projects and production orders.

100 unitsRequest quote1,000 unitsProject quote10,000 unitsProject quote

Pricing is confirmed for your selected configuration.

Discuss a custom configuration
SKU: CC-SM640-640T Category:

TECHNICAL RESOURCES

Product documents

Mechanical drawingAssembly dimensions and mounting references.PDF · 136 KBDownload

Description

640 × 512 / 8 μm / <3.5 g

Ultra-small, ultra-light LWIR imaging for space-constrained OEM systems.

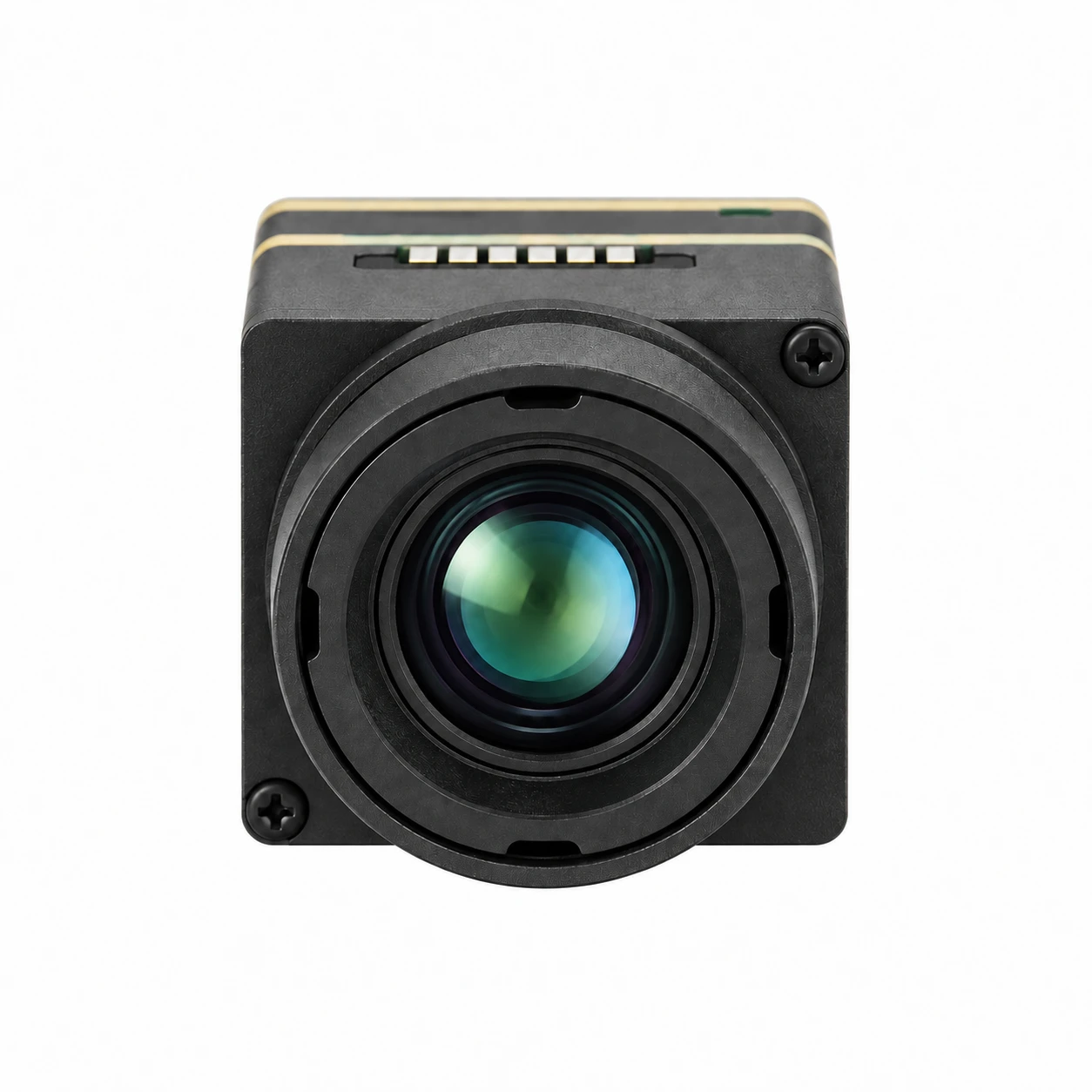

CAMCUDA SuperMini 640 / 640T combines a 640 × 512 uncooled VOx detector, an 8 μm pixel pitch and a 13 × 13 mm footprint in a core weighing less than 3.5 g. The series is designed for low-SWaP integration in compact drones, micro-gimbals, FPV platforms and embedded thermal imaging systems.

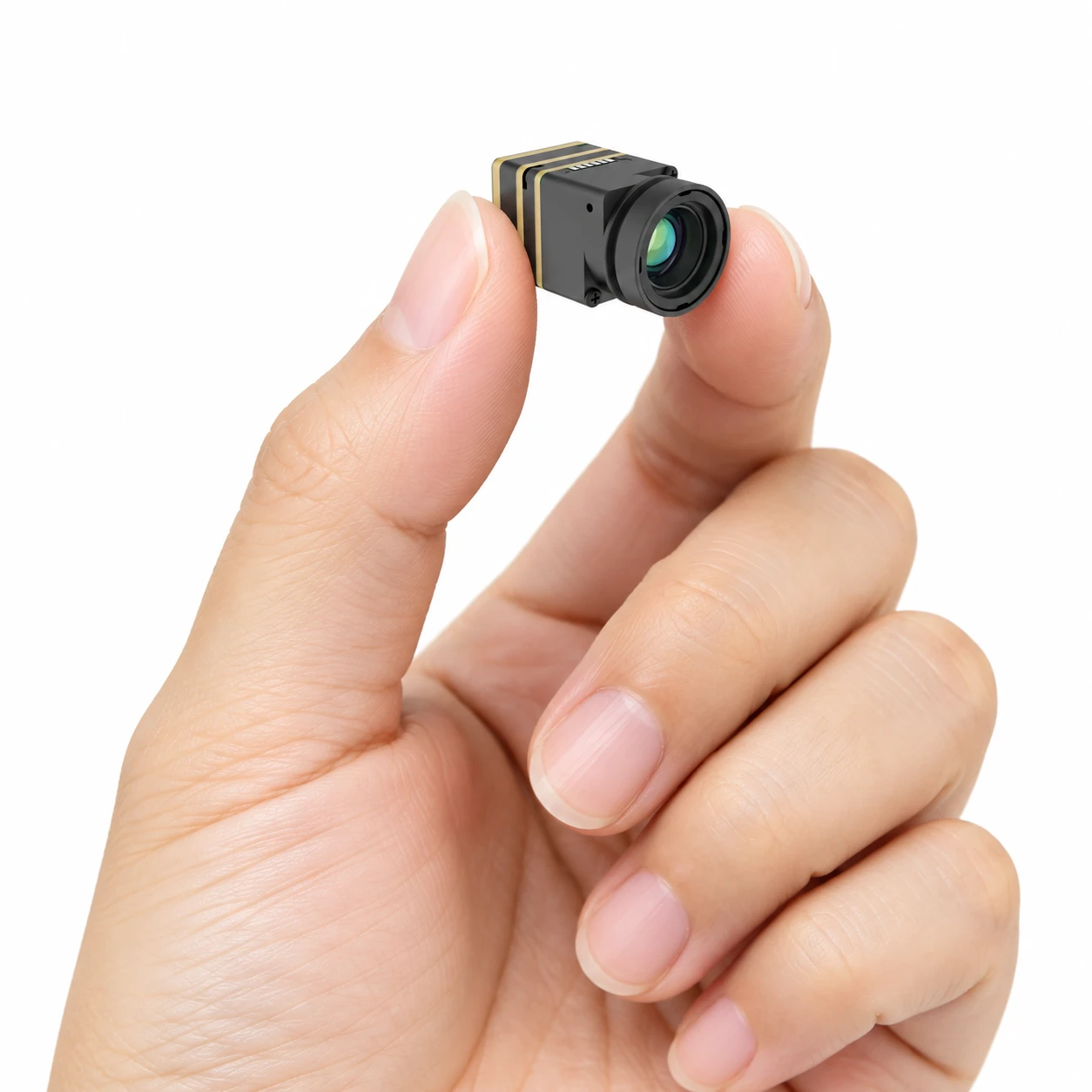

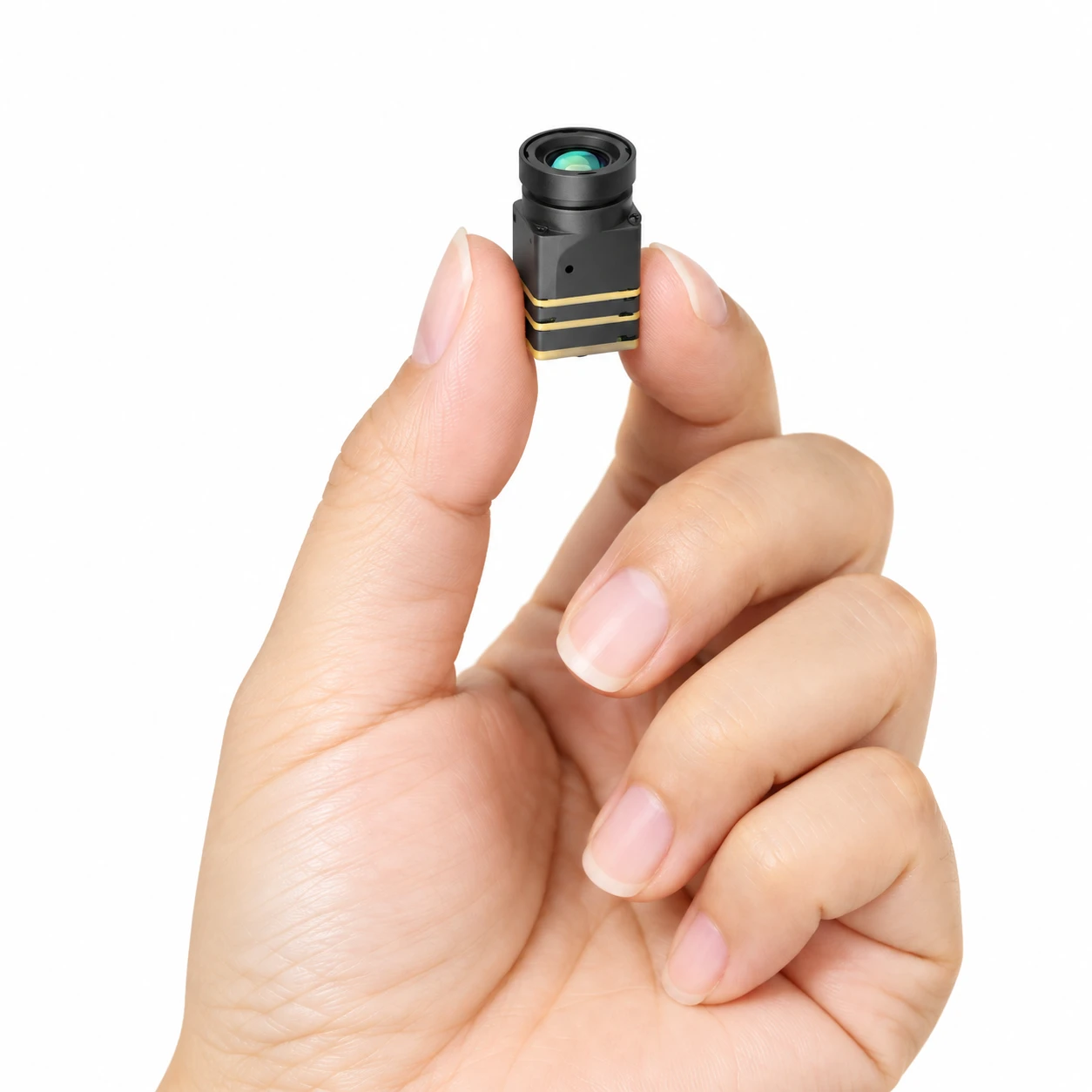

13 × 13 mmCore footprint
<3.5 gCore weight
8 μmPixel pitch
≤0.5 WTypical core power

Two Factory-Configured Models

Choose imaging speed or thermographic data.

The two versions share the same detector format and compact core architecture, but their functions, frame rates and output data are different. Confirm the model before hardware and software integration.

Imaging only

CAMCUDA SuperMini 640 Ultra-Light LWIR Module

50 Hz

  • Thermal imaging without temperature measurement
  • 8-bit LVCMOS / BT656 and 2-lane MIPI paths
  • Designed for low-latency imaging integration
Thermographic

CAMCUDA SuperMini 640T

30 Hz

  • Imaging and temperature measurement
  • CDS3 and MIPI temperature-data paths
  • −20°C to +150°C and 100°C to +650°C ranges
Model boundary

Temperature ranges, measurement accuracy, temperature-data output and conversion formulas apply only to CAMCUDA SuperMini 640T. They do not apply to the imaging-only CAMCUDA SuperMini 640.

Athermal Lens Options

Select field of view before requesting a quotation.

All listed lenses are F1.0 athermal configurations. Overall dimensions and weight change with the selected optical assembly.

Wide angle

3.7 mm

90.0° × 68.2°

F1.0 · 2.16 mrad IFOV

Wide field

6.1 mm

46.6° × 37.6°

F1.0 · 1.31 mrad IFOV

Balanced field

8.7 mm

40.0° × 32.2°

F1.0 · 0.92 mrad IFOV

Narrow field

11 mm

24.9° × 20.0°

F1.0 · 0.73 mrad IFOV

Mechanical Integration

A 13 × 13 × 13.4 mm core for low-SWaP designs.

The published core dimensions and weight exclude the lens, flange and user expansion board. Freeze the exact lens, connector clearance, cable direction and heat path before enclosure tooling.

  • Core dimensions: 13 × 13 × 13.4 mm
  • Core weight: less than 3.5 g
  • Detector: 640 × 512 VOx uncooled focal-plane array
  • Spectral range: 8–14 μm

Download Product Manual

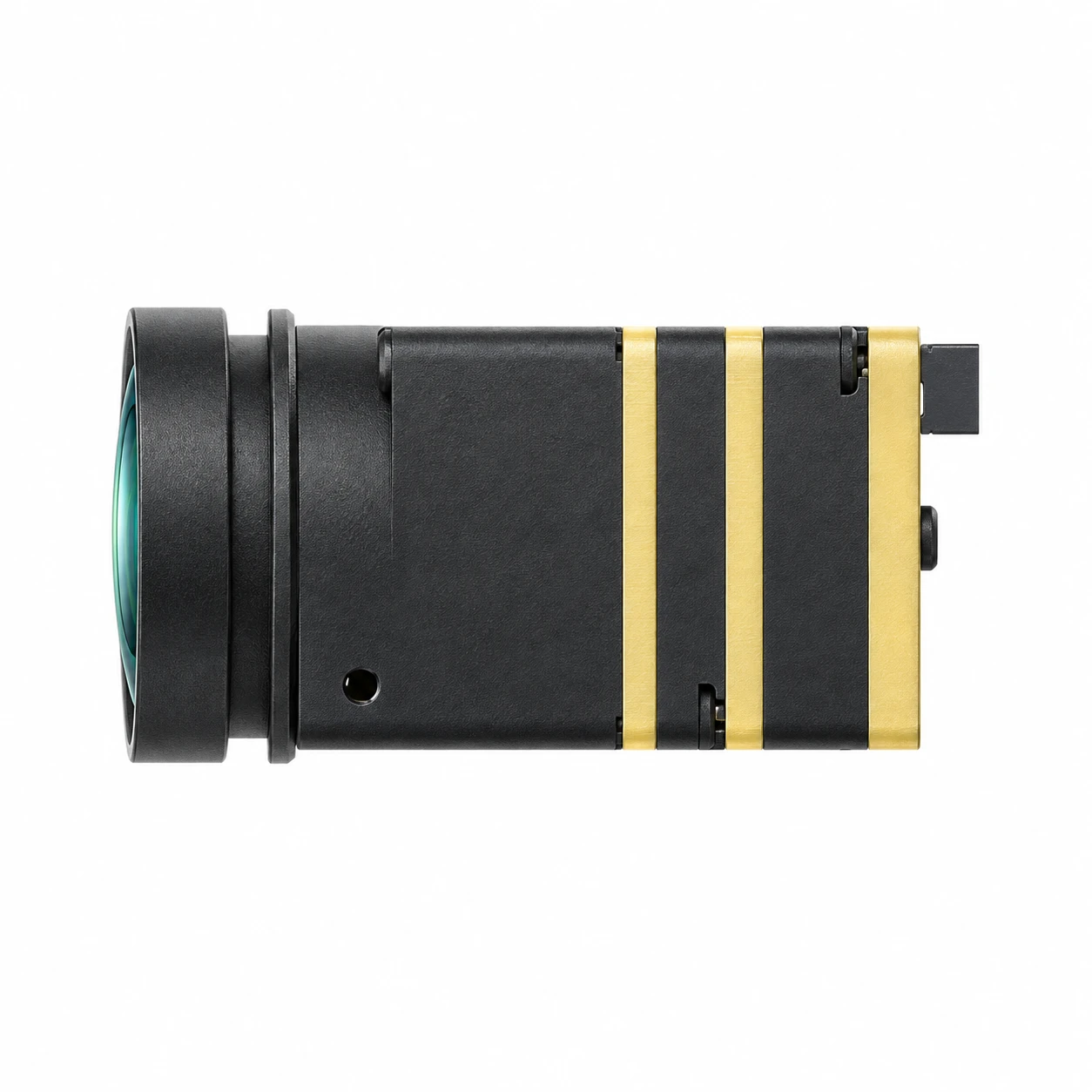

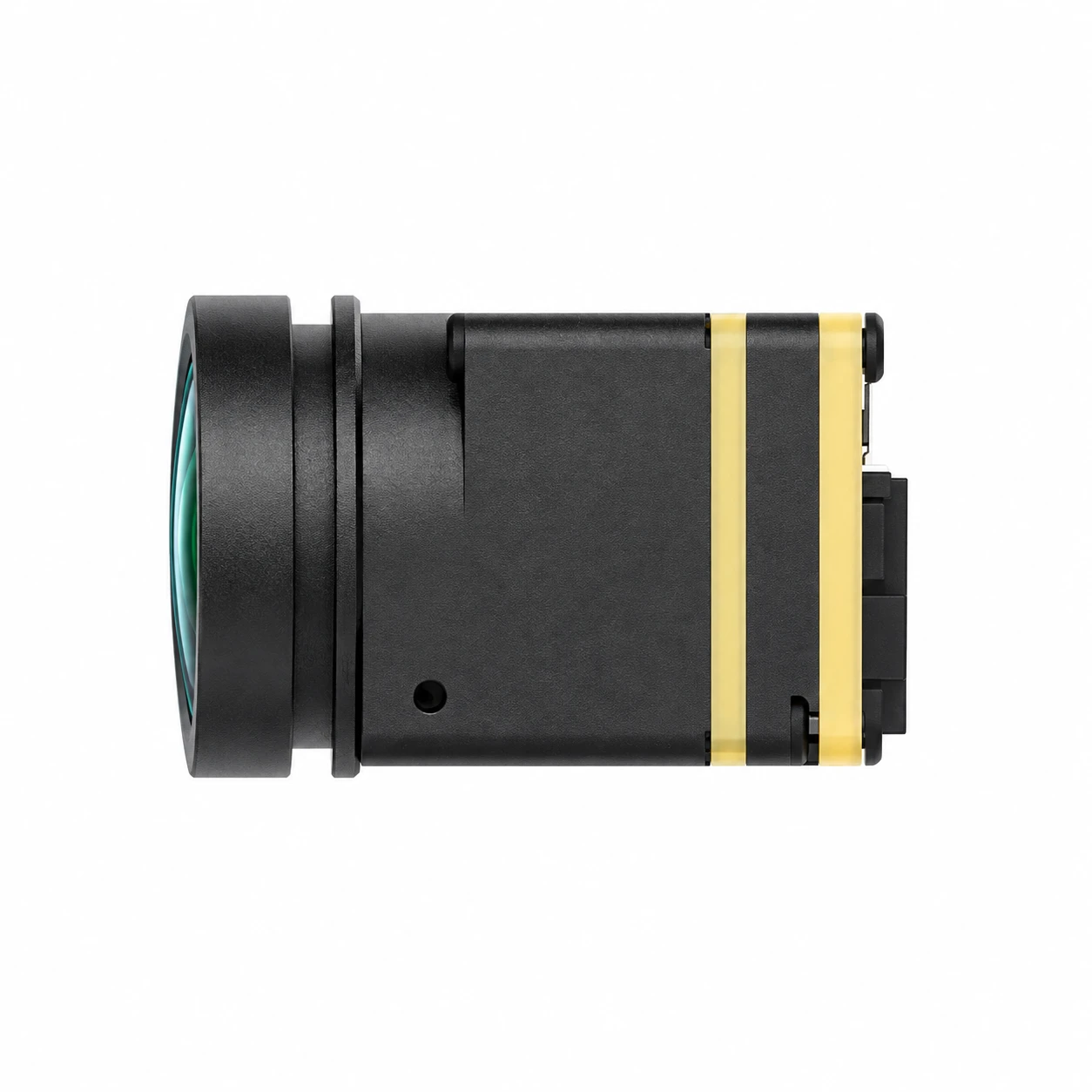

CAMCUDA SuperMini 640 compact core side profile
Core and optical assembly reference. Final envelope depends on the selected lens and expansion board.

Power, Video & Control

Confirm every rail and output mode with the host design.

The core uses a Hirose DF40C-30DP-0.4V(51) 30-pin connector. BT656 and MIPI are available only through this interface and cannot be used simultaneously.

Path Published requirement Integration note
MAIN_POWER 3.8–5.2 V, typical 5 V 10 mV p-p maximum noise
+3.3 V rail 3.28–3.32 V 10 mV p-p maximum noise
+1.8 V rail 1.78–1.82 V 1 mV RMS, 1 Hz–50 kHz
Digital video 8-bit LVCMOS; 2-lane MIPI 640: BT656 · 640T: CDS3
Control UART, 1.8 V logic TX/RX defined from the core
USB / CVBS USB 2.0 pins; CVBS pin CVBS requires an external video-buffer IC

Optional expansion board: TMS6102V100F022 provides a 4-pin USB interface for both the imaging and thermographic variants. Refer to the product manual for the complete 30-pin definition and power-on timing.

Published Specifications

CAMCUDA SuperMini 640 / 640T technical reference.

Detector
VOx uncooled infrared focal-plane detector
Resolution
640 × 512
Pixel pitch
8 μm
Spectral range
8–14 μm
NETD
≤40 mK @ 25°C, F1.0
Frame rate
640: 50 Hz · 640T: 30 Hz
Polarity
Black hot / white hot
Image mirroring
Vertical / horizontal / diagonal
Image processing
Grayscale stretching; local contrast enhancement; temporal and spatial noise reduction; detail and edge enhancement
Typical core power
≤0.5 W at 25°C, excluding expansion board
Core dimensions
13 × 13 × 13.4 mm, excluding optics and boards
Core weight
<3.5 g, excluding optics and boards
Operating temperature
−40°C to +70°C; thermography −20°C to +60°C
Storage temperature
−45°C to +80°C
Humidity
5–95%, non-condensing
Compliance
RoHS 2.0 compliant

640T Thermography Only

Temperature data with clearly defined limits.

CAMCUDA SuperMini 640T supports temperature measurement from −20°C to +150°C and from 100°C to +650°C. Typical accuracy is ±2°C or ±2% of reading at an ambient temperature of −20°C to +60°C.

CDS3 transmits YUV422 image data and temperature data. MIPI CSI-2 uses RAW8 packets that the host combines into 16-bit image and temperature values, low byte first.

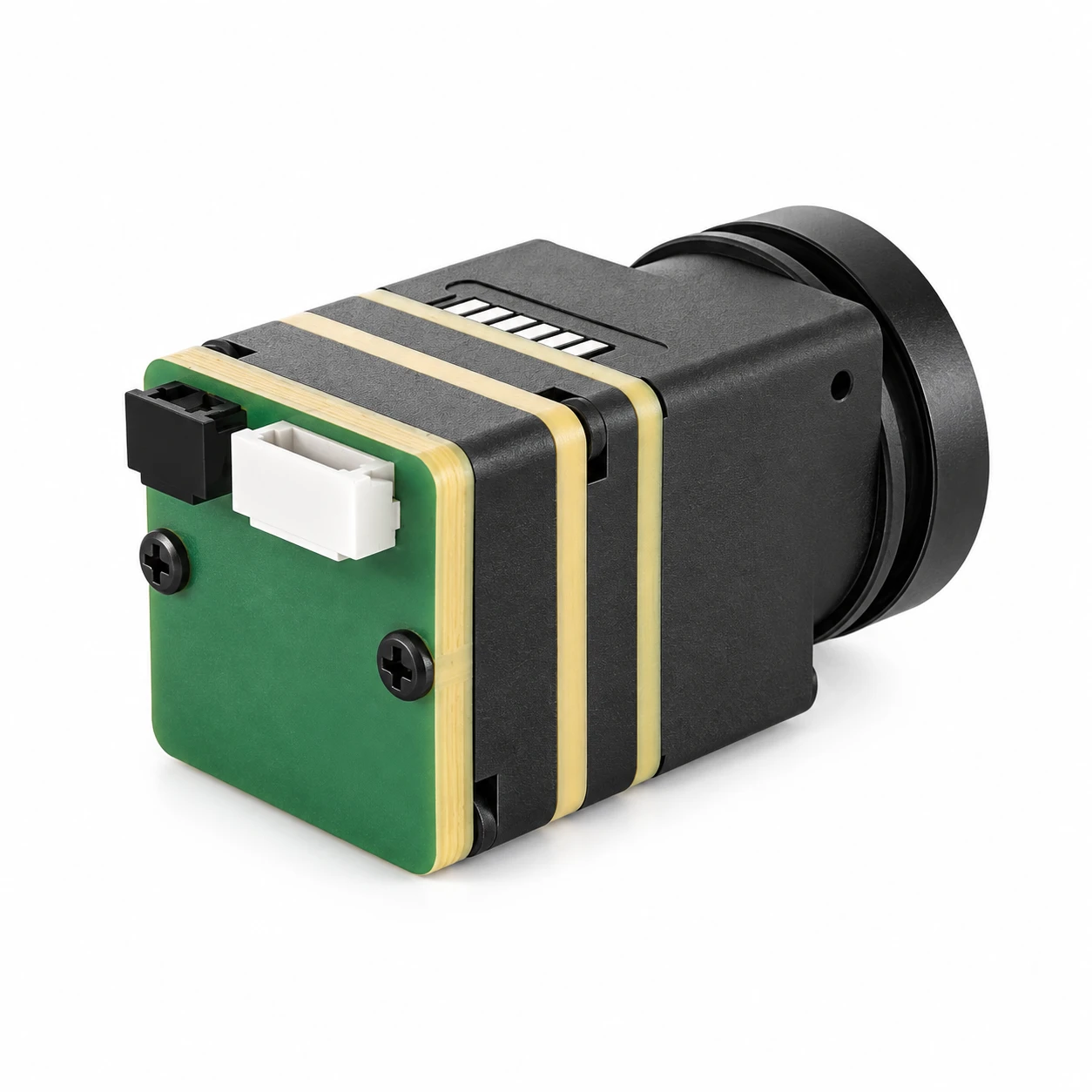

CAMCUDA SuperMini 640 rear connector interface
Host-side parsing, calibration workflow and the exact production interface must be validated with the selected 640T configuration.

OEM Validation

Lock the model, lens and interface before volume production.

  1. 01Select

    Choose 640 imaging or 640T thermography, then select the lens.

  2. 02Confirm

    Review rails, connector, video protocol, cable and mechanical drawing.

  3. 03Validate

    Bench-test image output, controls, power, thermal path and host parsing.

  4. 04Scale

    Freeze the approved BOM, firmware, optics and document revision.

Engineering reference · Product Manual V1.0.0

Plan the power budget and host video receiver.

The following details come from the supplied English product manual, January 2026 edition. Values apply to the bare core unless an expansion board is explicitly named.

Power-rail current and startup requirements

Rail Peak current Typical steady current Noise limit
MAIN_POWER 200 mA 80 mA 10 mV p-p
+3.3 V 100 mA 20 mA 10 mV p-p
+1.8 V 100 mA 35 mA 1 mV RMS, 1 Hz–50 kHz

Steady currents are reference values at 25 °C. The manual specifies t1, t2 and t3 each greater than 200 μs; use its power-on timing definition when designing the supply sequence. A startup-time specification is not provided. Wait more than 5 seconds after power-off before restarting.

Choose the receiver for the selected output mode

Path Published format Host integration
8-bit LVCMOS 45 MHz; progressive RAW image; 640 × 512 Clock, line/frame synchronization and 8 data bits; pseudocolor is not supported on LVCMOS.
CDS3 · 640T only 45 MHz; YUV422 image plus temperature data Section 3.3.3 describes embedded SAV/EAV synchronization using one clock and 8 data lines. Temperature words are low byte first.
2-lane MIPI 216 Mbps per lane; 108 MHz clock lane; specified high level 1.2 V One differential clock pair and two differential data pairs. BT656 and MIPI cannot operate simultaneously.

640T MIPI capture: configure RAW8 CSI-2 reception as (1280 × 2) × 512. Reassemble adjacent bytes, low byte first, into 1280 × 512 16-bit values. Each valid line contains 640 image words followed by 640 temperature words. The detector remains 640 × 512; the larger receive layout carries both image and temperature data.

Synchronization note: the manual’s summary table and detailed CDS3 timing text describe synchronization differently. Confirm the actual firmware timing with the interface documentation before implementing the receiver.

640T temperature conversion

Appendix 2 gives the following conversion rules for the thermographic 640T only. Select the formula for the actual ND or HD output mode; do not infer the mode from the numerical value.

ND mode

T = (TEMP + 7000) / 30 − 273.2

HD mode

T = (TEMP − 4600) / 10 − 273.2

T is temperature in °C after converting the received TEMP value. These formulas do not apply to imaging-only CAMCUDA SuperMini 640 and do not extend the published measurement ranges or accuracy conditions.

Connector, accessories and handling

  • IR_SYNC is the 1.8 V external-trigger input on pin 23; UART_RX/TX are pins 25/27, referenced to the core. Use the complete pin table for mating orientation and wiring.
  • The optional TMS6102V100F022 4-pin USB board supports both variants and uses 5 V USB_VBUS. The separately described 5-pin analog board accepts 5–20 V; this is not the bare-core input range.
  • Manual vibration reference: 2 g random, 3 axes / 6 directions. Shock reference: 6 g, 2 ms terminal-peak sawtooth, 3 axes / 6 directions.
  • Disconnect power before mating cables, take ESD precautions, keep the detector window untouched and avoid pointing the core at the sun or other intense radiation sources.

Read the complete V1.0.0 manual

Reference sections: 3.1–3.5 for interfaces and power, section 5 for handling, and Appendix 2 for temperature conversion. Mechanical dimensions depend on the lens and expansion-board assembly.

FAQ

Questions before requesting a CAMCUDA SuperMini 640 sample.

What is the difference between CAMCUDA SuperMini 640 and 640T?

CAMCUDA SuperMini 640 is an imaging-only 50 Hz model without temperature measurement. CAMCUDA SuperMini 640T is a 30 Hz thermographic model that outputs image and temperature data and supports the published measurement ranges.

Does the assembled camera remain 13 × 13 × 13.4 mm and under 3.5 g?

No. Those figures apply to the core module only and exclude the lens, flange and expansion board. Request the mechanical drawing for the exact optical and interface configuration.

Can BT656 and MIPI be used at the same time?

No. The product manual states that BT656 and MIPI cannot be used simultaneously. Confirm the required output path before ordering.

Which lens options are specified?

The supplied manual specifies 3.7 mm, 6.1 mm, 8.7 mm and 11 mm F1.0 athermal lenses, with the field-of-view and IFOV values shown above.

Does the module operate from one 5 V supply?

The bare core requires MAIN_POWER plus regulated 3.3 V and 1.8 V rails with the published sequencing and noise limits. The optional USB expansion board uses 5 V USB_VBUS.

What should be included in the RFQ?

Send the model, lens, required video interface, host platform, quantity, destination, target schedule and required drawing, SDK or compliance documents.

OEM / Volume RFQ

Need an ultra-light 640 × 512 core for your next compact system?

Tell us whether you need imaging or thermography, the lens and interface, your available envelope and the expected quantity. CAMCUDA will confirm the production configuration and quotation.

Additional information

Weight 0.0035 kg
Model

CAMCUDA SuperMini 640 — Imaging / 50 Hz, CAMCUDA SuperMini 640T — Thermographic / 30 Hz
Resolution

640 × 512
Pixel pitch

8 μm
Frame rate

50 Hz imaging, 30 Hz thermography
Lens focal length

3.7 mm, 6.1 mm, 8.7 mm, 11 mm
Digital video

8-bit LVCMOS, BT656, CDS3, 2-lane MIPI
Core dimensions

13 × 13 × 13.4 mm, excluding optics and boards
Core weight

<3.5 g, excluding optics and boards
