Uncooled LWIR Thermal Modules: 8 Essential Checks for Reliable Outdoor Monitoring
uncooled LWIR thermal modules decisions become safer when the buyer connects product parameters to the real application: drone payload, outdoor observation, OEM embedded device, or industrial inspection. This guide uses Camcuda product context and practical RFQ questions so the uncooled LWIR thermal modules choice is easier to validate.
uncooled LWIR thermal modules: quick answer for reliable module selection
A strong uncooled LWIR thermal modules article should help an engineer or buyer make a decision, not only define a term. Use the charts, examples, and RFQ checklist below to compare real integration constraints before requesting pricing.
uncooled LWIR thermal modules outdoor selection chart
uncooled LWIR thermal modules for outdoor security and industrial monitoring should be reviewed by sensitivity, environment, lens, enclosure, and operator workflow.
| Outdoor requirement | What to check | Why it matters |
|---|---|---|
| Night visibility | Resolution, NETD, lens/FOV | Controls detection and recognition usefulness. |
| Harsh environment | Temperature, humidity, enclosure | Prevents field reliability issues. |
| Monitoring workflow | Video output and palettes | Operator readability matters. |
| Industrial checks | Target distance and report need | Decides whether module detail is enough. |

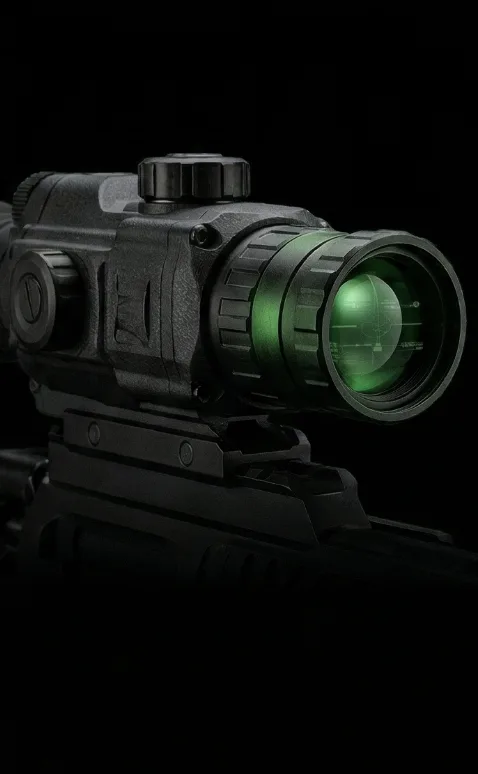

Outdoor security and industrial monitoring case
A buyer wants thermal visibility for a perimeter, yard, equipment line, or field device. uncooled LWIR thermal modules can help when visible cameras struggle, but the final product still needs lens, enclosure, power, mounting, and video workflow planning.
HR21-L612-USB reference values for compact LWIR work
| Area | Parameter | Exact HR21-L612-USB value | Selection meaning |
|---|---|---|---|
| Detector | Detector type | Vanadium oxide uncooled infrared focal plane detector | Uncooled LWIR platform for compact OEM integration. |
| Image detail | Resolution | 640 × 512 | Useful when drone, outdoor, or OEM work needs more detail than detection-only modules. |
| Motion | Detector frame rate | 50 Hz | Relevant for UAV motion and smoother operator video. |
| Optics | Pixel pitch | 12 μm | Important for lens/FOV matching. |
| Thermal band | Spectral range | 8–14 μm | Identifies LWIR thermal imaging range. |
| Sensitivity | NETD | ≤40 mK @ 25°C, F#1.0 | Supports small thermal-difference visibility when inspection conditions are suitable. |
| Power | Supply voltage | 5 V ±0.5 V | Check host power rail and protection design. |
| Power | Typical power consumption @ 25°C | <1.2 W, including expansion board | Important for drones and compact battery-powered systems. |
| Interface | Digital video | USB | Practical host-side video path for evaluation and integration. |
| Interface | Communication interface | USB serial port, 1 × RS-422 | Control path should be planned before PCB/enclosure decisions. |
| Mechanical | Weight | <15 g | Important for UAV payloads and compact devices. |
| Mechanical | Dimensions | 21 mm × 21 mm × 20.2 mm | Check gimbal, enclosure, and cable service space. |
| Environment | Operating temperature | -40°C to +85°C | Relevant for outdoor and field systems. |
| Environment | Humidity | 5%-95%, non-condensing | Enclosure design still matters for condensation control. |
| Ruggedness | Vibration / shock | 6.06 g random vibration; 80 g @ 4 ms shock | Review for UAVs, vehicles, and rugged inspection devices. |
Outdoor thermal module mistakes
- Ignoring condensation and enclosure sealing.
- Choosing lens/FOV too late.
- Expecting pseudo color to replace proper scene planning.
- Forgetting mounting vibration and cable routing.
Outdoor/industrial RFQ checklist
- Scene type and target distance.
- Lens/FOV and enclosure plan.
- Power and video interface.
- Operating environment and mounting conditions.
- Quantity and destination market.
Plan an outdoor thermal path
Start with Outdoor / Field Thermal Imaging, compare Uncooled Thermal Modules, or contact Camcuda RFQ.
FAQ for outdoor thermal buyers
Are uncooled LWIR thermal modules useful at night?
Yes, they use thermal contrast rather than visible light, but lens and scene design matter.
Can they identify people or equipment?
It depends on resolution, lens/FOV, distance, and display workflow.
Does humidity matter?
Yes. Product data may list humidity range, but enclosure and condensation control are still critical.
Is 640 × 512 always needed?
Not always. Use it when the scene needs more detail.
What should I send for RFQ?
Scene, distance, lens/FOV, power, interface, environment, and quantity.
Can one module support security and industrial checks?
Possibly, but lens and software may differ.
What image palette is best?
Choose by operator workflow; black hot and white hot are common starting points.
What is the biggest risk?
Under-defining the actual outdoor scene before buying hardware.
uncooled LWIR thermal modules validation workflow before purchase
A practical uncooled LWIR thermal modules validation workflow should start with a written requirement sheet. The sheet should name the application, target distance, lens/FOV expectation, host processor, interface path, power rail, mechanical envelope, operating environment, quantity range, and destination market. This simple document makes the supplier conversation more useful than a generic request for price.
For engineering teams, the second step is a bench test plan. Confirm whether the uncooled LWIR thermal modules can produce usable video on the intended host, whether the control path is documented, whether the module can be powered safely, and whether the image settings are enough for the target scene. For procurement teams, the same test plan becomes a checklist for comparing samples and supplier responses.
The third step is a field or application simulation. A drone payload should be checked against weight, vibration, flight height, and reporting workflow. An outdoor system should be checked against enclosure, condensation risk, lens window, mounting position, and day/night operation. An OEM embedded system should be checked against PCB layout, cable exit, software integration, and future production repeatability.
Example RFQ language for Camcuda
Instead of writing only “please quote a uncooled LWIR thermal modules,” use a more complete request: “We are building a thermal imaging product for [application]. The host platform is [processor/system]. We need [interface] output, [lens/FOV] target, [quantity] units, and the destination market is [region]. Please recommend a module path, drawing/document package, sample availability, and integration risks.”
This RFQ style improves technical matching and helps Camcuda respond with a useful product path. It also protects the buyer from comparing incompatible modules just because they share a similar resolution or product photo.
How to compare suppliers for uncooled LWIR thermal modules
When comparing suppliers, avoid a spreadsheet that only lists price and resolution. A stronger uncooled LWIR thermal modules comparison should include whether the supplier can provide product detail pages, drawings, interface notes, realistic lead-time discussion, media assets, and application guidance. A supplier that can explain integration risk is usually easier to work with than one that only sends a short quote.
For Camcuda buyers in Europe and North America, documentation and communication also matter. Ask whether the supplier can confirm the product model, clarify the interface, explain what is included in the module scope, and identify which requirements need engineering review. If the answer is vague, the project may still be possible, but the buyer should treat the quotation as incomplete.
Acceptance test checklist after samples arrive
- Confirm the shipped model matches the quoted uncooled LWIR thermal modules path.
- Check basic power-up behavior with the intended host or evaluation platform.
- Verify video output and control communication before mechanical integration.
- Compare image output under at least two realistic scenes.
- Review mechanical fit with cable, mount, enclosure, and lens/window constraints included.
- Record questions for the supplier before moving to production quantity.
This acceptance step is especially important for thermal imaging projects because many issues do not appear in a product photo. The uncooled LWIR thermal modules may look correct but still require interface adjustment, lens matching, or enclosure changes. Treat the first sample as an engineering validation tool rather than a final production approval.
