CAMCUDA AI Track EO & Thermal UAV Camera Modules

Price range: $474.23 through $1,420.97

CAMCUDA AI Track offers four EO and EO + thermal camera configurations for civilian inspection, observation and robotics imaging. Choose a 4 TOPS or 6 TOPS processing platform, with optional 640 × 512 LWIR thermal imaging.

  • 4T models: 2160 × 1440 visible imaging at 60 Hz.
  • 6T models: 1920 × 1080 visible imaging at 120 Hz.
  • Dual 640: one visible camera + 640 × 512 thermal camera at 50 Hz.
  • Select a configuration for its sample price and five-image gallery. 100+ units: request a volume quote.

Configure and purchase

Choose your configuration

Review the current online unit price, then check out or request an OEM quotation.

Configuration
Selected configuration
Select a configuration

Confirming configuration…

Product subtotal—

Shipping and applicable taxes are confirmed at checkout.

Online orders: 1–99 units. Need 100+? Get volume quote

OEM & volume pricing

Configuration review for custom projects and production orders.

100 unitsRequest quote1,000 unitsProject quote10,000 unitsProject quote

Pricing is confirmed for your selected configuration.

Discuss a custom configuration
SKU: CC-AI-TRACK-SERIES Category:

Description

CAMCUDA AI Track · EO & thermal camera modules

One camera series. Four ways to see more.

Choose visible imaging or visible plus LWIR thermal imaging for civilian inspection, observation and robotics projects. CAMCUDA AI Track brings a processing board and model-specific cameras into a compact OEM package, with 4 TOPS and 6 TOPS configurations.

4 / 6 TOPSModel-specific processing
Up to 120 Hz6T visible-camera reference
640 × 512Dual 640 thermal resolution
Four modelsSeparate five-image galleries

Hardware close-up

A closer look at the camera and processing board.

Single visible-camera sample with its connected processing board. Select your model below to review the configuration-specific hardware.

CAMCUDA AI Track single visible-camera sample with connected processing board
Connected sample
CAMCUDA AI Track single visible camera and processing board with connection cable
Camera & board

Configuration selection

Visible only, or visible plus thermal.

Choose your imaging configuration first. Each option below opens its matching sample price and five-image gallery. For production orders of 100 units or more, request a project quotation.

CAMCUDA AI Track 4T EO camera configuration

4 TOPS · Visible

CAMCUDA AI Track 4T EO

2160 × 1440 at 60 Hz
4.37 mm visible lens

1–99 units · Unit price$474.23
Choose this configuration
CAMCUDA AI Track 4T Dual 640 camera configuration

4 TOPS · Visible + thermal

CAMCUDA AI Track 4T Dual 640

2160 × 1440 visible + 640 × 512 thermal
4.37 mm EO / 9.1 mm thermal

1–99 units · Unit price$897.33
Choose this configuration
CAMCUDA AI Track 6T EO 1080p camera configuration

6 TOPS · Visible

CAMCUDA AI Track 6T EO 1080p

1920 × 1080 at 120 Hz
8.45 mm visible lens

1–99 units · Unit price$997.87
Choose this configuration
CAMCUDA AI Track 6T Dual 640 camera configuration

6 TOPS · Visible + thermal

CAMCUDA AI Track 6T Dual 640

1920 × 1080 visible + 640 × 512 thermal
8.45 mm EO / 9.1 mm thermal

1–99 units · Unit price$1,420.97
Choose this configuration

What does Dual 640 mean? One visible camera plus one 640 × 512 thermal camera—not two visible cameras. Thermal imaging is not a claim of calibrated temperature measurement.

Application videos

See the hardware in the field.

Watch the supplied CAMCUDA single-spectrum AI tracking demonstration. This is a visible-camera demo, not a demonstration of the Dual 640 thermal image or calibrated temperature measurement. Confirm the demonstrated hardware and software version for your intended configuration.

Single-spectrum demonstration · approximately 28 seconds · click to play.

More from the field.

Supplied application recordings. These clips do not establish performance for every configuration or demonstrate calibrated thermal measurement.

Outdoor flight footage20 seconds · Click to play
Field flight recording20 seconds · Click to play
Field monitor recording22 seconds · Click to play

At-a-glance comparison

Match the camera to your imaging requirements.

Configuration Processing Visible camera Thermal camera
CAMCUDA AI Track 4T EO 4 TOPS 2160 × 1440 / 60 Hz
4.37 mm lens		 Not included
CAMCUDA AI Track 4T Dual 640 4 TOPS 2160 × 1440 / 60 Hz
4.37 mm lens		 640 × 512 / 50 Hz
9.1 mm lens
CAMCUDA AI Track 6T EO 1080p 6 TOPS 1920 × 1080 / 120 Hz
8.45 mm lens		 Not included
CAMCUDA AI Track 6T Dual 640 6 TOPS 1920 × 1080 / 120 Hz
8.45 mm lens		 640 × 512 / 50 Hz
9.1 mm lens

Visible and thermal frame rates describe their respective cameras. They do not establish the resolution or frame rate of every external output. Confirm the delivered video mode and firmware with your quotation.

6T platform · TM02 specification reference

1080p visible imaging. Optional 640 thermal.

Processing
6 TOPS
CPU
A76 at 2.4 GHz + A55 at 1.8 GHz
Visible sensor
1/1.8 inch
Visible imaging
1920 × 1080 at 120 Hz
Visible lens
8.45 mm
Visible FOV
D 66.3° / H 57.1° / V 30.4°
Thermal option
6T Dual 640 only
Detector
Uncooled VOx · 12 μm pixels
Thermal imaging
640 × 512 at 50 Hz
Spectral range
8–14 μm LWIR
Thermal lens
9.1 mm
Thermal FOV
D 61.8° / H 47.7° / V 38.2°

Document mapping: CAMCUDA AI Track 6T EO 1080p corresponds to TM02-Solo; CAMCUDA AI Track 6T Dual 640 corresponds to TM02-SoloT. The PDF’s TM02-Dual and TM02-DualT are different, wide/far visible-camera configurations and are not selectable options in this listing. The 4T specifications below use the existing TC01 product references, not the TM02 document.

Published specifications

Check the exact model before ordering.

Expand a configuration for its imaging, processing and mechanical reference. Specifications are configuration-specific; do not transfer 6T parameters to 4T models.

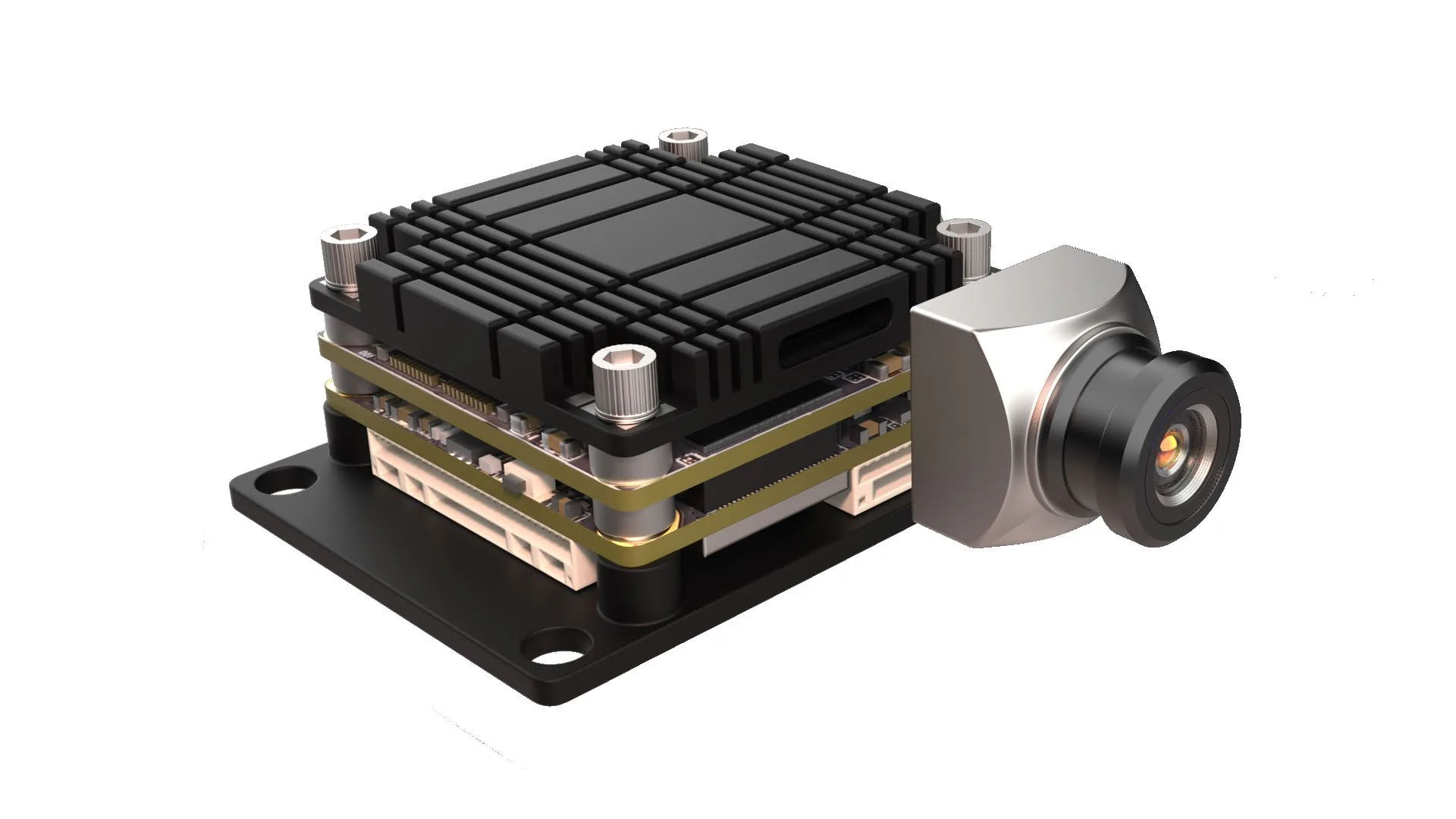

CAMCUDA AI Track 4T EO
Imaging configuration
Product model TC01-HD
Target types Person and vehicle
Display mode PIP supported
Processing platform
AI compute 4 TOPS
Control protocol CRSF
Flight-controller support BetaFlight and ArduPilot
Input voltage 9-16 V DC regulated
Board size 38 x 38 x 24.5 mm
Mounting pattern 25.5 x 25.5 mm
EO Camera
Sensor 1/1.8-inch
Focal length 4.37 mm
Field of view D 131.6 deg / H 109 deg / V 57.5 deg
Minimum illumination 0.001 lux reference
Resolution and frame rate 2160 x 1440 at 60 Hz
Camera size 25.5 x 19.5 x 19.5 mm
CAMCUDA AI Track 4T Dual 640
Imaging configuration
Product model TC01-DUAL
Target types Person and vehicle
Display and fusion PIP and dual-light fusion supported
Processing platform
AI compute 4 TOPS
Control protocol CRSF
Flight-controller support BetaFlight and ArduPilot
Input voltage 9-16 V DC regulated
Board size 38 x 38 x 24.5 mm
Mounting pattern 25.5 x 25.5 mm
EO Camera
Sensor 1/1.8-inch
Focal length 4.37 mm
Field of view D 131.6 deg / H 109 deg / V 57.5 deg
Minimum illumination 0.001 lux reference
Resolution and frame rate 2160 x 1440 at 60 Hz
Camera size 25.5 x 19.5 x 19.5 mm
Thermal Camera
Detector class Uncooled LWIR thermal imaging camera
Spectral range 8-14 um
Pixel pitch 12 um
Focal length 9.1 mm
Field of view D 61.8 deg / H 47.7 deg / V 38.2 deg
Resolution and frame rate 640 x 512 at 50 Hz
Camera size 29.49 x 19.1 x 19.1 mm
Board connection USB supplier reference; confirm connector revision
CAMCUDA AI Track 6T EO 1080p
Imaging configuration
Product model TM02-SOLO
Target types Person and vehicle
Processing platform
AI compute 6 TOPS
CPU Arm Cortex-A76 2.4 GHz plus Cortex-A55 1.8 GHz
Control protocol CRSF
Flight-controller support BetaFlight and ArduPilot
Recommended input Regulated 9-16 V DC
Board size 45 × 45 × 26 mm (specification table; see mechanical note below)
Mounting pattern 42.5 x 42.5 mm
Interface references CVBS, UART, Ethernet, and USB; confirm connector revision
EO Camera
Sensor 1/1.8-inch
Focal length 8.45 mm
Field of view D 66.3 deg / H 57.1 deg / V 30.4 deg
Minimum illumination 0.001 lux reference
Resolution and frame rate 1920 x 1080 at 120 Hz
Camera size 25.5 x 19.5 x 19.5 mm
CAMCUDA AI Track 6T Dual 640
Imaging configuration
Product model TM02-SoloT
Target types Person and vehicle
Processing platform
AI compute 6 TOPS
CPU Arm Cortex-A76 2.4 GHz plus Cortex-A55 1.8 GHz
Control protocol CRSF
Flight-controller support BetaFlight and ArduPilot
Recommended input Regulated 9-16 V DC
Board size 45 × 45 × 26 mm (specification table; see mechanical note below)
Mounting pattern 42.5 x 42.5 mm
EO Camera
Sensor 1/1.8-inch
Focal length 8.45 mm
Field of view D 66.3 deg / H 57.1 deg / V 30.4 deg
Minimum illumination 0.001 lux reference
Resolution and frame rate 1920 x 1080 at 120 Hz
Camera size 25.5 x 19.5 x 19.5 mm
Thermal Camera
Detector Uncooled VOx
Spectral range 8-14 um
Pixel pitch 12 um
Focal length 9.1 mm
Field of view D 61.8 deg / H 47.7 deg / V 38.2 deg
Resolution and frame rate 640 x 512 at 50 Hz
Board connection MIPI supplier reference; confirm connector revision

Mechanical & documentation review

Confirm the supplied revision before enclosure design.

Board dimensions are not kit dimensions.

The TM02 specification table lists a 45 × 45 × 26 mm board and 42.5 × 42.5 mm mounting pattern. Its separate assembly drawing shows a 45 × 55 × 30.7 mm outline. Confirm the applicable board, bracket and complete assembly drawing before fixing enclosure clearances.

The 4T board reference is 38 × 38 × 24.5 mm, with a 25.5 × 25.5 mm mounting pattern.

Use the confirmed electrical specification.

The TM02 specification table states 9–16 V DC; another connector page lists a different range. This page retains the 9–16 V table reference pending revision confirmation. Request the approved interface and cable document for the supplied model.

Product mass, packed shipping weight and the final accessory list should be confirmed for the selected kit; board dimensions alone do not define shipping weight.

Request the model-specific document pack

Civilian OEM projects

From an evaluation sample to a repeat order.

  1. 01

    Select

    Choose EO or EO + thermal, then compare resolution, optics and processing platform.

  2. 02

    Confirm

    Request the exact hardware revision, mechanical drawing and included accessory list.

  3. 03

    Evaluate

    Check image quality and suitability for your civilian inspection or observation project.

  4. 04

    Scale

    Send the approved configuration, quantity and delivery requirements for a volume quote.

Supply boundary: the selected processing-board and camera configuration is not a complete aircraft or turnkey system. The supplier document expressly excludes the flight controller and ESC from the standard package. Other accessories, software deliverables and services are included only when stated in the quotation.

Compare the CAMCUDA AI camera module range, explore AI VisionCube, or review the CAMCUDA FlexMini 640 thermal module if you need a thermal module rather than this camera-and-processing-board series.

100+ / 1000+ units · Volume RFQ

Planning production? Ask for your volume price.

Get a configuration-specific quotation for your next civilian imaging project. Share your selected model, quantity, destination and required delivery date so we can confirm pricing and availability.
