How to Select the Best Thermal Camera: Engineering & Sourcing Guide

Selecting the best thermal camera for industrial inspection, defense payloads, perimeter surveillance, or embedded OEM integration requires cutting straight through marketing fluff and getting down to the raw optoelectronic physics. In the Long-Wave Infrared (LWIR, 8–14 µm) band, performance isn’t decided by fancy spec-sheet bullet points. It’s dictated by hard optical and semiconductor realities: detector chemistry, microbolometer pixel pitch, thermal sensitivity (Noise Equivalent Temperature Difference, or NETD), optical transmission efficiency ($F$-number), and hardware-level signal processing latency. Sourcing engineers and electro-optical designers have to balance these core parameters against tough real-world constraints—shock, vibration, wide thermal swings, and stringent supply-chain compliance.

Look, in high-stakes condition monitoring and remote tactical deployments, an under-specified sensor subsystem will burn you every single time. You end up with flooded alarm logs from false triggers, useless spatial resolution at target stand-off distances, and budget-killing redesign cycles midway through system integration. This engineering and sourcing guide lays out a battle-tested blueprint for evaluating uncooled Vanadium Oxide (VOx) thermal imaging systems. From optical reach modeling using Johnson’s criteria and high-speed digital interface design (MIPI, USB, DVP, GigE) to hands-on hardware tear-downs of rugged handheld units and long-range binocular platforms, here are the exact technical metrics you need to specify, benchmark, and procure the right thermal camera for your system.

1. Core Sensor Parameters: Microbolometer Architecture & Physics

Here’s the deal with thermal imaging cores: everything starts and ends with detector physics. The primary imaging engine of an uncooled thermal camera is the Focal Plane Array (FPA). In an uncooled microbolometer, an array of microscopic, thermally isolated pixel membranes absorbs incoming LWIR radiation. That absorbed photon energy heats the membrane, driving a measurable change in electrical resistance. That resistance swing is read out and digitized per-pixel by an underlying Readout Integrated Circuit (ROIC). If your sensor material or readout architecture is mediocre, no software filter on earth will save your image quality downstream.

Microbolometer Materials: Vanadium Oxide (VOx) vs. Amorphous Silicon (a-Si)

The semiconductor substrate selected for the microbolometer active layer dictates the raw signal-to-noise ratio (SNR), thermal response time, and long-term calibration stability of your entire electro-optical assembly:

• ⚙️ Vanadium Oxide (VOx): VOx is the gold standard for mission-critical industrial thermography, aerospace gimbals, and defense observation. It exhibits a high Temperature Coefficient of Resistance (TCR)—typically running between 2% and 3% per Kelvin—combined with exceptionally low $1/f$ (flicker) electronic noise. This high TCR allows VOx sensors to detect minuscule thermal gradients while maintaining ultra-fast thermal time constants ($\tau \approx 8\text{ to }12\text{ ms}$). In the field, that fast response prevents image ghosting and smearing when tracking high-speed targets or panning across complex scenes.
• ⚙️ Amorphous Silicon (a-Si): Amorphous silicon microbolometers are cheaper to manufacture because they can run on standard, mature commercial CMOS lines. But you pay for that cost savings in performance. a-Si suffers from an inherently lower TCR (around 1.5%/K) and noticeably higher electronic noise floors. As a result, a-Si arrays exhibit lower thermal sensitivity and sluggish thermal time constants ($\tau > 15\text{ ms}$), causing target blurring and muddy thermal contrast in dynamic environments.

Thermal Sensitivity (NETD) and Noise Floor Dynamics

Noise Equivalent Temperature Difference (NETD) defines the smallest apparent temperature delta a thermal detector can resolve before its own internal electronic noise swamps the signal. On the test bench, it’s modeled as:

NETD = V_n / (ΔV_s / ΔT)

Where $V_n$ represents the total RMS electrical noise voltage of the detector channel and $\Delta V_s / \Delta T$ represents the signal responsivity slope per unit change in target temperature. Standard commercial thermal cores operate with NETD ratings around 40 mK to 50 mK. But for high-reliability systems, state-of-the-art uncooled VOx engines push that floor all the way down to ≤ 20 mK (tested at 25°C with an F1.0 optical aperture at 25–50 Hz). A sub-20 mK sensitivity allows your system to pull out razor-sharp structural edges and subtle thermal gradients even in low-delta conditions—like heavy coastal fog, high relative humidity, rain fade, or featureless overcast skies where cheap sensors deliver a flat, gray, unusable image.

Pixel Pitch ($d$) Scaling and Modulation Transfer Function (MTF)

The industry migration from legacy 17 µm microbolometers to modern 12 µm pixel pitch architectures represents a massive operational leap for electro-optical packaging:

• ✅ Payload Miniaturization: Shrinking the pixel pitch from 17 µm down to 12 µm cuts the total active sensor area by roughly 50% for the same pixel matrix. That means your optical engineer can spec a significantly smaller objective lens diameter to achieve the exact same magnification and spatial reach, slashing total optical payload mass and volume by up to 40%.
• ✅ Instantaneous Field of View (IFOV): The angular sampling resolution of an individual pixel is defined by $\text{IFOV} = d / f$, where $d$ is the microbolometer pitch and $f$ is the optical focal length. A 12 µm pitch gives you tighter spatial sampling per millimeter of focal length, allowing your system to hit required stand-off distances without hanging a massive, heavy Germanium telephoto barrel off the front of the enclosure.
• ✅ Modulation Transfer Function (MTF): Modern 12 µm focal plane arrays maintain high spatial frequency contrast across the sensor plane, delivering crisp edge transitions that are critical for automated object classification algorithms and small-scale industrial fault isolation.

For compact automation inspection rigs or auxiliary temperature monitoring nodes where physical volume and low weight take priority over ultra-high pixel counts, lightweight micro-modules like the TC160-NF 160×120 LWIR Thermal Imaging Module deliver an ultra-compact, cost-effective drop-in option.

2. Optical Engineering: Focal Length, Aperture, and DRI Range Modeling

Thermal optical assemblies operate strictly in the infrared spectrum. Standard optical glass is completely opaque to LWIR wavelengths; point an 8–14 µm sensor through standard borosilicate glass and it looks like a solid brick wall. Thermal optics demand single-crystal Germanium (Ge) or specialized Chalcogenide glass elements, diamond-turned and coated with high-durability Anti-Reflective (AR) and Diamond-Like Carbon (DLC) exterior coatings to survive hostile operating environments.

Aperture Throughput ($F$-Number) and Energy Transmission

In thermal optics, optical throughput is defined by the aperture ratio, or $F$-number ($F/\# = f / D$, where $f$ is focal length and $D$ is the clear entrance pupil diameter). The total infrared radiant flux ($E$) reaching your microbolometer array scales inversely with the square of the $F$-number:

E ∝ 1 / (F/#)² = D² / f²

An F1.0 optical design passes maximum photonic energy straight to the sensor array. If you cut corners and select an F1.2 or F1.4 lens to save cost, you cut incoming thermal radiant energy by 30.5% and 49% respectively. Think about that: pairing a top-tier ≤ 20 mK detector with a slow F1.2 or F1.4 lens completely cancels out the sensor’s low-noise advantage, degrading your effective system-level sensitivity down to a noisy 35–45 mK baseline. The best engineered thermal systems maintain a true F1.0 aperture across their entire lens lineup (25mm, 35mm, 50mm, and 70mm).

Johnson’s Criteria & DRI (Detection, Recognition, Identification) Calculations

Optical reach modeling in the infrared domain relies on Johnson’s Criteria to calculate the probability of resolving targets under baseline atmospheric conditions:

You can model the theoretical maximum line-of-sight detection distance ($R_{\text{det}}$) using this geometric formula:

R_det = (Target Critical Dimension × Lens Focal Length) / (Required Pixels × Pixel Pitch)

Let’s run the numbers: take a 640×512, 12 µm VOx core paired with a 70mm lens focused on a 1.8-meter human target ($N_{\text{crit}} = 3\text{ pixels}$):

R_det = (1.8 m × 0.070 m) / (3 × 12 × 10^-6 m) = 0.126 / 0.000036 = 3,500 meters

3. Digital Video Pipelines, Interfaces, and Machine Vision Standards

Raw electrical data off a microbolometer array is rough. It requires substantial on-sensor processing and calibration before you get high-contrast, radiometric video streams ready for an operator display or an AI inference engine.

The Real-Time Image Processing Pipeline

Modern high-performance thermal cores run dedicated image signal processors (ISPs) to execute complex algorithmic corrections on the fly at a fluid 50 Hz frame rate:

• ⚙️ Non-Uniformity Correction (NUC): Due to microscopic semiconductor manufacturing variations, every single microbolometer pixel has its own unique baseline offset and gain slope. The ISP applies multi-point calibration tables, refreshed periodically via an internal electromechanical shutter or smart shutterless optical drift algorithms, to keep the focal plane uniformly calibrated.
• ⚙️ Bad Pixel Replacement (BPR): Individual microbolometer pixels can drift or fail over time. The ISP continuously flags dead or erratic pixels and dynamically interpolates their values from adjacent healthy pixels to keep the video stream artifact-free.
• ⚙️ Dynamic Range Compression & Digital Detail Enhancement (DDE): Raw thermal data comes off the ROIC at 14-bit or 16-bit wide dynamic range (over 16,384 discrete levels). Standard displays only show 8-bit (256 levels). Advanced DDE algorithms compress the scene dynamic range without flattening local contrast, boosting high-frequency edge definition and subtle thermal textures.

Embedded Hardware Interfaces: MIPI, DVP, USB, and Analog

Picking the right electrical interface is critical to avoiding latency bottlenecks and compute overhead on your host processor:

• ⚙️ MIPI-CSI2 & Parallel DVP: These low-level embedded interfaces pump uncompressed 14-bit radiometric frames straight into the hardware ISP or GPU of host System-on-Chips (SoCs) like the NVIDIA Jetson, Rockchip RK3588, or custom FPGA platforms. Bypassing the USB protocol stack drops glass-to-glass latency below 30 ms. For a full breakdown of pinouts, hardware routing, and signal timing, dig into our technical guide on thermal camera module interfaces (USB, MIPI, CVBS, DVP).

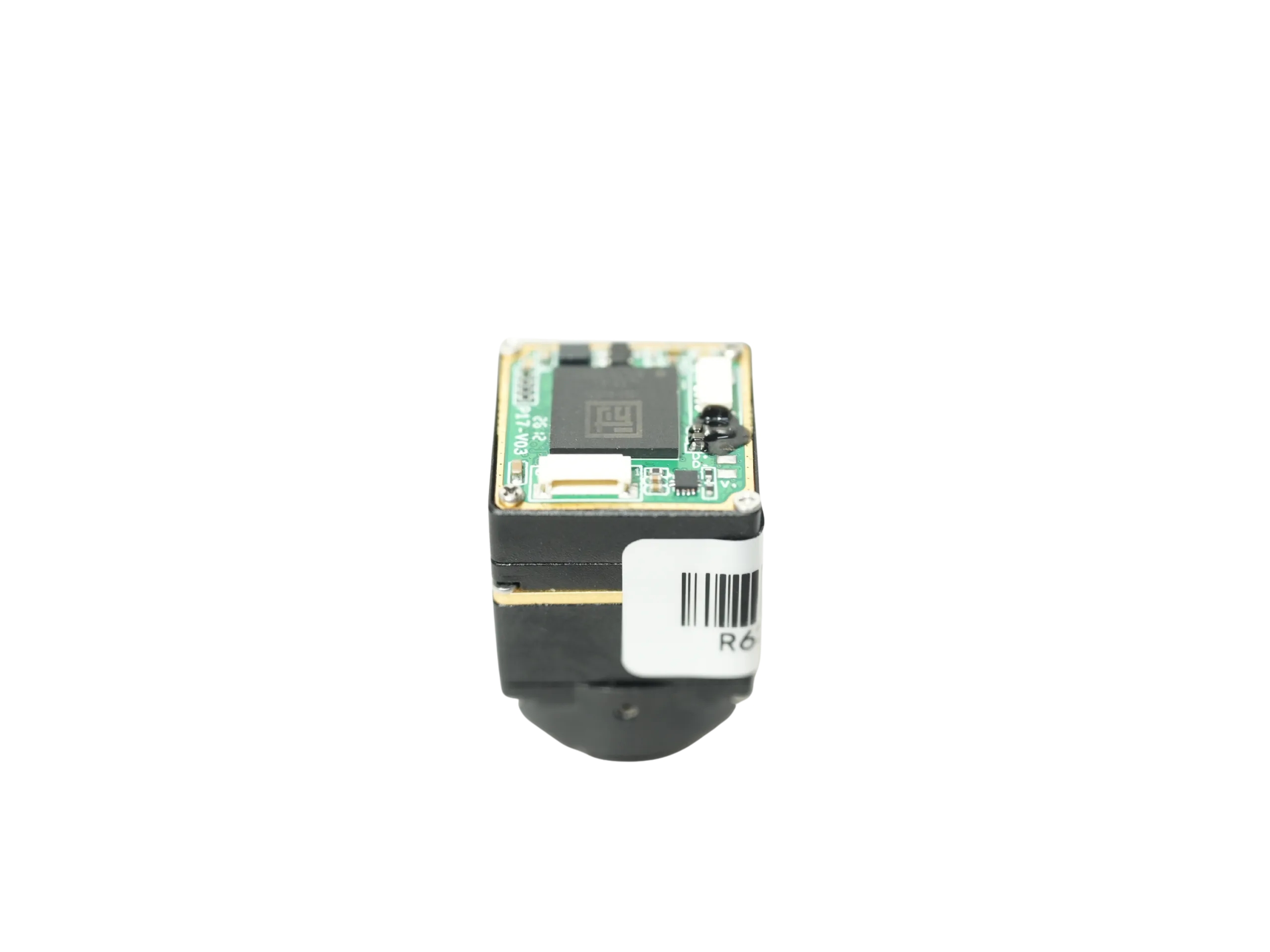

• ⚙️ USB-C (UVC Protocol): Standard USB Video Class connections provide true plug-and-play operation for rapid prototyping, benchtop testing, and industrial PC integration. High-end modules output simultaneous dual streams over USB: an 8-bit AGC-colorized stream for operator viewing, and a 14-bit Y16 stream containing raw temperature data for automated software analysis.
• ⚙️ 50 Hz Analog CVBS: For lightweight analog field monitors, low-latency FPV video downlinks, or retrofitting legacy industrial CCTV networks, a direct 50 Hz PAL/NTSC analog output provides zero-latency streaming without any software stack overhead.

Industrial Machine Vision and Computer Vision Protocols

When you’re wiring thermal vision into automated factory floors and smart robotics, standard integration protocols are non-negotiable. Full compliance with the A3 GigE Vision Standard ensures deterministic Ethernet data streaming, multi-camera sync via IEEE 1588 Precision Time Protocol (PTP), and clean integration through universal GenICam software stacks.

At the same time, modern computer vision architectures are running neural networks straight against 14-bit radiometric data. Ingesting raw high-bit-depth thermal feature maps directly into CNN backbones enables automated defect classification, optical gas monitoring, and perimeter tracking without losing critical edge details to standard 8-bit dynamic range compression. You can explore the latest research on infrared target tracking and multi-spectral sensor fusion over at ArXiv Computer Vision.

4. Field-Proven Hardware: Handheld & Long-Range Observation Systems

If you’re outfitting mobile inspection crews, tactical security teams, or setting up fixed perimeter posts, you need integrated, field-hardened optomechanical platforms. Here’s a direct bench comparison of two high-performance optical platforms built for field mobility and long-range observation.

System Parameter	Handheld Infrared Thermal Observation Instrument	Ura-Y Series 640×512 Handheld Thermal Observation Binocular
Hardware Preview	Compact Handheld Monocular System	Dual-Ocular Long-Range Binocular
Sensor Technology	VOx Uncooled Microbolometer (8–14 µm LWIR)	VOx Uncooled Microbolometer (8–14 µm LWIR)
Resolution Options	384×288 @ 12 µm / 640×512 @ 12 µm Dual Paths	640×512 Native High-Resolution Array
Pixel Pitch	12 µm Advanced Sub-Band Architecture	12 µm Advanced Sub-Band Architecture
Frame Rate	50 Hz Real-Time Fluid Refresh	50 fps Continuous Movement Tracking
Objective Optics	25 mm / 35 mm / 50 mm F1.0 Precision Lenses	70 mm F1.0 High-Magnification Objective
Field of View (FOV)	Configurable by Lens Selection	7.0° × 4.8° Concentrated Narrow-Beam FOV
Thermal Sensitivity	≤ 20 mK (@ 25°C, F1.0, 25 Hz)	High-Sensitivity VOx Low-Noise Baseline
Weight Envelope	~550 g Ultra-Lightweight Class	~1 kg Rugged Field-Hardened Class
Primary Applications	Mobile inspection, field survey, plant diagnostics	Perimeter watch, search & rescue, long-range patrol

Deep-Dive: Handheld Infrared Thermal Observation Instrument

The Handheld Infrared Thermal Observation Instrument is built for field engineers, utility maintenance crews, and mobile inspection units who need immediate tactical thermography without being weighed down by clunky gear.

In the shop, flexibility matters. This platform offers selectable sensor configurations (384×288@12µm or 640×512@12µm) paired with F1.0 Germanium optics in 25mm, 35mm, or 50mm focal lengths. With a certified thermal sensitivity rating of ≤ 20 mK, this unit resolves faint thermal signatures across high-voltage switchgear, mechanical bearings, and refractory linings with exceptional clarity. The 50 Hz frame rate delivers butter-smooth motion tracking during rapid scans, and the ergonomic ~550 g housing prevents wrist fatigue during all-day plant surveys.

Key Technical Advantages:

• ✅ Flexible Sensor Resolutions: Available in 384×288 and 640×512 configurations to match operational requirements and program budgets.
• ✅ Class-Leading Sensitivity: Certified at ≤ 20 mK (@ 25°C, F1.0, 25 Hz), resolving faint temperature variations in demanding weather.
• ✅ Interchangeable F1.0 Optics: Choose between 25mm, 35mm, or 50mm Germanium optics to match your required field of view.
• ✅ Compact Ergonomics: Lightweight ~550 g chassis designed for balanced, one-handed field operation.

Pre-Procurement RFQ Checklist:

• ⚙️ 1. Specify required detector resolution: 384×288@12µm or 640×512@12µm.
• ⚙️ 2. Select objective focal length (25mm, 35mm, or 50mm F1.0) based on target stand-off distances.
• ⚙️ 3. Define battery workflow, mounting accessories, and transport cases.
• ⚙️ 4. Confirm total order volume, delivery schedule, destination country, and compliance requirements (including NDAA documentation).

View Product Details & Pricing ➔

Deep-Dive: Ura-Y Series 640×512 Handheld Thermal Observation Binocular

The Ura-Y Series 640×512 Handheld Thermal Observation Binocular is an electro-optical powerhouse built specifically for long-range observation, perimeter security, coastal monitoring, and border interdiction.

When you need to identify targets at distance, aperture and focal length rule the day. Powered by a 640×512, 12 µm uncooled VOx sensor and a massive 70mm F1.0 Germanium objective, the Ura-Y narrows the field of view down to a concentrated 7.0° × 4.8° for maximum reach. The true binocular dual-display system eliminates the eye fatigue that ruins operator effectiveness during multi-hour shifts, while the 50 fps refresh rate gives you lag-free tracking of fast-moving vehicles and personnel across wide-open sectors.

Key Technical Advantages:

• ✅ Native 640×512 VOx Core: High-density 12 µm array packing 327,680 active thermal pixels for crisp spatial target classification.
• ✅ High-Magnification 70mm F1.0 Objective: Delivers exceptional photon collection and reach across a narrow 7.0° × 4.8° field of view.
• ✅ Fluid 50 fps Tracking: Keeps motion crisp and sharp during rapid scanning and vehicle interdiction.
• ✅ Dual-Eye Ergonomics: Substantially cuts operator eye fatigue during extended surveillance operations in a sealed, rugged ~1 kg frame.

Pre-Procurement RFQ Checklist:

• ⚙️ 1. Validate target operational range against the narrow 7.0° × 4.8° optical footprint.
• ⚙️ 2. Define primary operational environment (perimeter defense, coastal watch, search and rescue).
• ⚙️ 3. Specify tripod interfaces, battery packs, and field harness requirements.
• ⚙️ 4. Request full factory datasheets, export classifications, and NDAA Section 889 compliance statements.

View Product Details & Pricing ➔

5. Compliance, Regulatory Verification, and Sourcing Best Practices

Look, procuring advanced thermal imaging hardware isn’t just about reading specs—it requires staying ahead of international export regulations, defense sourcing mandates, and environmental ruggedization standards. Dropping the ball on compliance during early procurement will cost you months in customs delays or run your project straight into legal liability.

Export Controls: Frame Rate Restrictions and Dual-Use Regulations

Because high-performance thermal cameras can be integrated into defense systems, global trade control bodies (including the Wassenaar Arrangement, US Export Administration Regulations [EAR], and International Traffic in Arms Regulations [ITAR]) monitor thermal hardware distribution based on hard performance thresholds:

• ⚙️ 9 Hz vs. 50 Hz/60 Hz Frame Rates: Thermal cameras running at or below 9 Hz fall under lower-tier export controls, making them easy to ship for low-end commercial use. But 9 Hz video suffers from horrible motion judder and latency, making it useless for dynamic industrial monitoring, drone payloads, or tactical operations. Full-frame 50 Hz/50 fps systems require proper End-User Certificates (EUC) and validated export licensing when crossing international borders.
• ⚙️ Spatial Resolution Thresholds: High-resolution arrays (640×512 and higher) paired with sub-20 mK sensitivity are treated as dual-use goods. Sourcing teams must ensure clean supply chains and clear end-user documentation before placing purchase orders.

NDAA Section 889 Compliance & Sourcing Documentation

For US government contractors, federal integrators, and critical utility operators, compliance with Section 889 of the National Defense Authorization Act (NDAA) is mandatory. NDAA rules strictly prohibit buying or deploying surveillance and telecommunications equipment manufactured by specific covered entities or containing components from blacklisted supply chains. For step-by-step documentation templates and verification guidelines, check out our engineering briefing on NDAA thermal camera module North America RFQ documents.

Environmental Validation and Reliability Testing

To survive real-world field conditions, your thermal hardware must be certified against rigorous environmental test standards:

• ⚙️ Ingress Protection (IP Rating): Handheld field units and observation binoculars should carry at least IP66 or IP67 ratings, guaranteeing complete sealing against windblown dust and heavy water jets or temporary immersion.
• ⚙️ Thermal Shock & Operating Envelopes: High-reliability sensors must maintain NUC calibration stability across wide operating spans—typically -20°C to +50°C for industrial instruments, and -40°C to +60°C for defense-grade payloads.
• ⚙️ Optical Hardening: Front-element Germanium optics must be treated with Diamond-Like Carbon (DLC) coatings to prevent pitting and transmission loss from blowing sand, salt fog, and abrasive particulate contact.

6. Engineering FAQ & Technical Diagnostics
