Mini 640 LWIR Thermal Imaging Module

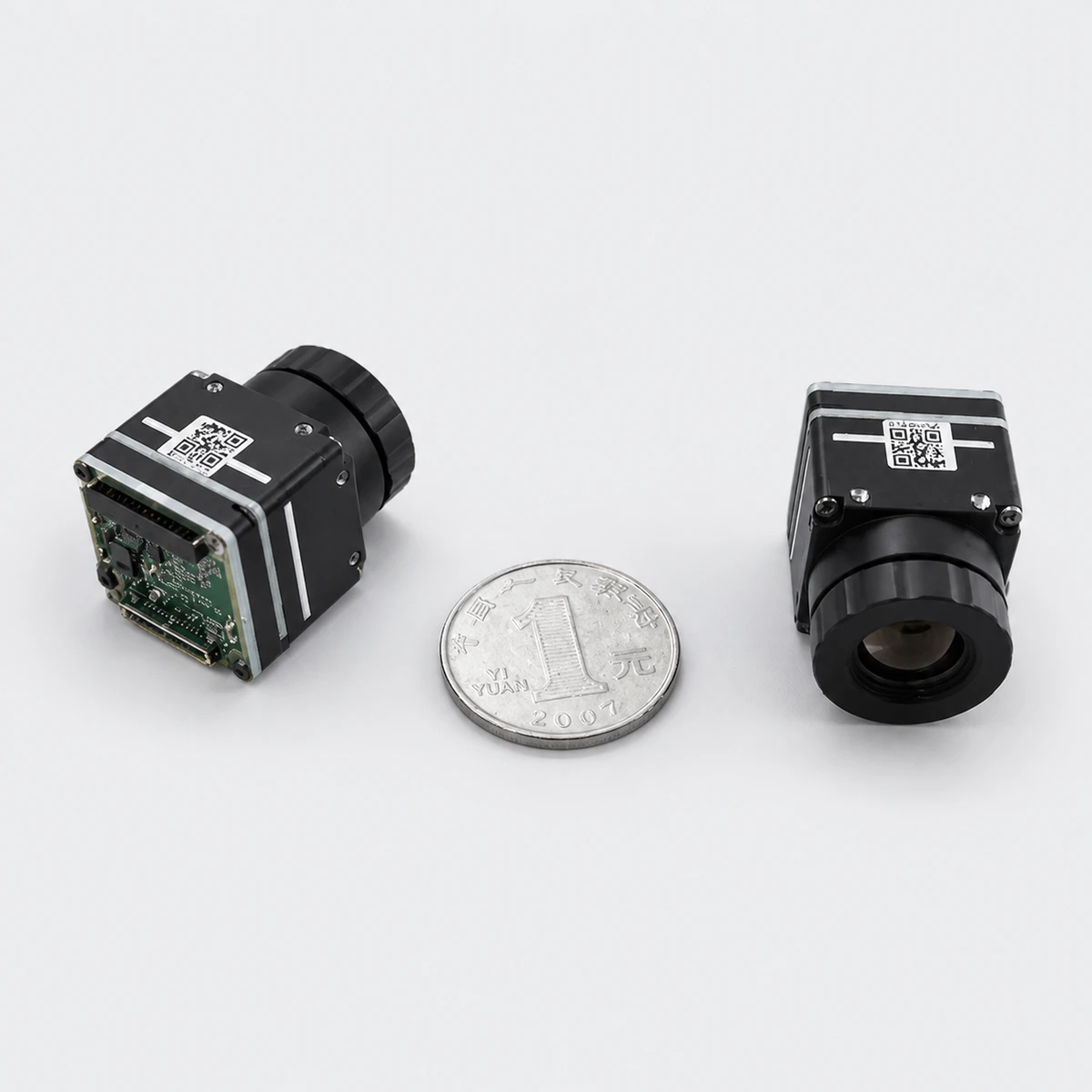

Mini 640 Uncooled LWIR Thermal Imaging Module

$499.00

100+ units$443.00 / unit1000+ units: RFQ volume pricing from $394.00 / unit

Mini 640 compact 640 x 512 uncooled VOx LWIR thermal imaging module with selectable focal lengths. The 9.1 mm version is currently in stock; other listed lens versions are temporarily out of stock and may be requested for restock or volume RFQ.

Description

Compact 640 x 512 thermal core with selectable fixed-focus optics

The Mini 640 is a compact uncooled LWIR thermal imaging module for OEM integration into handheld equipment, lightweight UAV payloads, robotics, security devices, and embedded vision systems. Select the required focal length above. The 9.1 mm configuration is currently in stock; the remaining lens configurations are displayed for engineering selection but are temporarily unavailable.

Lens selection and current availability

Focal length	Availability
4 mm, 7 mm, 13 mm, 15 mm, 18 mm, 25 mm, 35 mm, 50 mm, 60 mm, 75 mm	Temporarily out of stock
9.1 mm	In stock

Field of view, F-number, dimensions, lead time and price can change with the selected lens. Confirm the final optical BOM during RFQ.

Published reference specifications

Detector	Uncooled VOx focal-plane array, WLP package
Resolution	640 x 512
Pixel pitch	12 um
Spectral range	8-14 um LWIR
Frame-rate reference	25 / 50 Hz, version dependent
NETD reference	<50 mK @ 25 °C, F/1.0; <40 mK on selected versions
Available lens selections	4 / 7 / 9.1 / 13 / 15 / 18 / 25 / 35 / 50 / 60 / 75 mm
9.1 mm calculated FOV reference	Approx. 45.8° H x 37.3° V for 12 um / 640 x 512 format
Power reference	1.8 V / 3.3 V / 5 V rails; typical system power around 0.60 W on published Mini 640 material
Video and control reference	PAL/NTSC, BT.656, LVCMOS or DVP; UART / I2C / RS-232 options vary by board version
Temperature range reference	-40 to 80 °C

Integration boundary

Mini 640 revisions differ by output board, image-only versus radiometric configuration, frame rate, lens, and connector. Before ordering, confirm the exact part number, selected lens F-number and field of view, video interface, input voltage, cable set, firmware, temperature-measurement capability, and mechanical drawing. This page is for an imaging-module RFQ and does not imply radiometric measurement capability.

Supply scope

The quoted scope is the thermal module configuration only. Host computer, display, power regulator, enclosure, cables, UAV, gimbal, integration, and application software are not included unless specified in the quotation.
